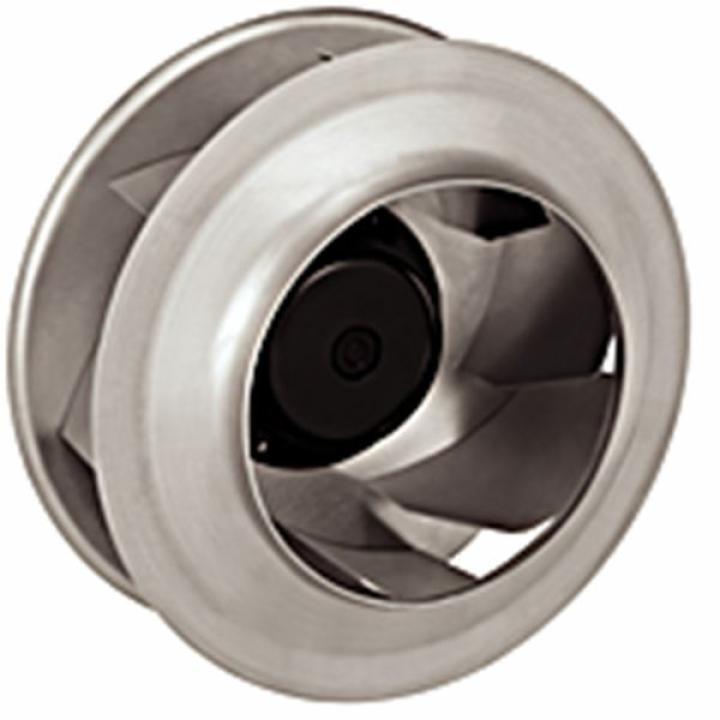

Ventilator centrifugal EC R3G310-AX54-21

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
R3G310-AX54-21
Out Of stock
Descriere
*Price quotation uppon request!*
Technical description
Mass: 11kg
Size: 310 mm
Material of electronics: housing Die-cast aluminum
Material of impeller: Plastic PA6, fiberglass-reinforced
Number of blades: 7
Direction of rotation Clockwise, seen on rotor
Type of protection: IP 54
Insulation class: "B"
Humidity class: F3-1
Max. permissible ambient temp engine. (transp. / storage): + 80 C
Min. permissible ambient temp engine. (transp. / storage): - 40 C
Motor bearing: Ball bearing
Speed steps: 2
Nominal data
Phase:1
Type of voltage:AC
Nominal voltage in V:230
Frequency in Hz:50/60
Type of data definition:maximum load
Speed in min-1:2850
Power input in W:1270
Current draw in A:5.6
Min. ambient temperature in C:-25
Max. ambient temperature in C:60
