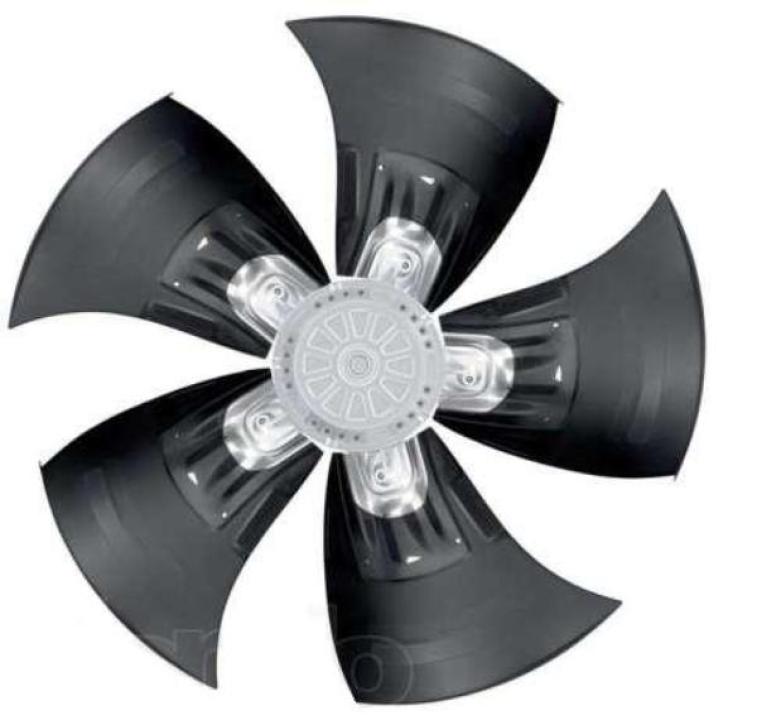

Ventilator axial A3G300-AK13-01

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
A3G300-AK13-01
Out Of stock
Descriere
*Price quotation uppon request!*
Technical description:
Mass: 1.96 kg
Size: 300 mm
Surface of rotor: passivated
Material of housing: Die-cast aluminium
Material of impeller: PP-GF40 plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing
Speed steps: 2
Nominal data
Phase: 1~
Type of voltage: AC
Nominal voltage in V: 230
Nominal voltage range V: 200-240
Frequency in Hz: 50/60
Type of data definition: maximum load
Speed rpm: 1500
Power input in W: 85
Current draw in A: 0.8
Max. back pressure in Pa: 85
Min. ambient temperature in C: -25
Max. ambient temperature in C: 60
