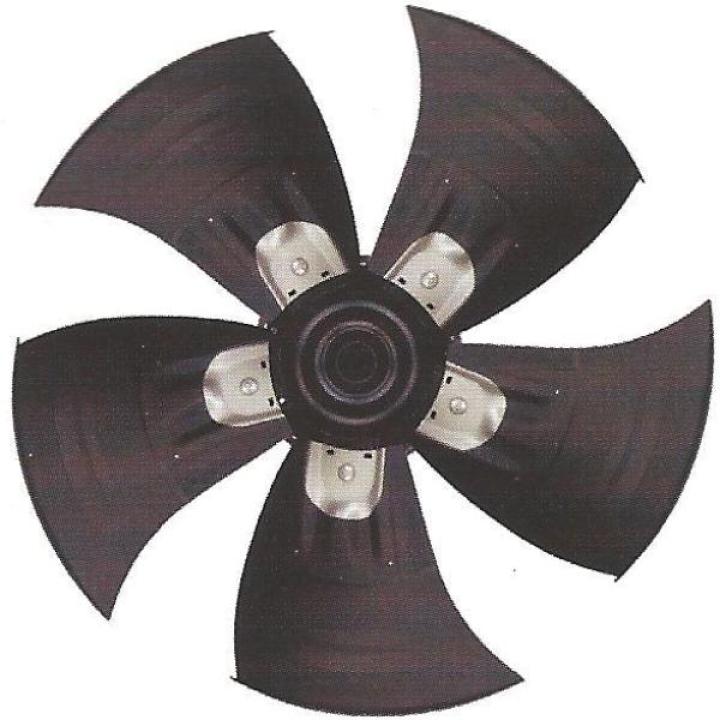

Ventilator axial cu motor Axial fan A3G710-AU21-35

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
A3G710-AU21-35
Out Of stock
Descriere
*Price quotation uppon request!*

Technical description:

Mass: 25.6 kg
Size: 710 mm
Surface of rotor: Coated in black
Material of housing: Die-cast aluminium
Material of impeller: Press-fitted sheet steel blank, sprayed with PP plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing
Nominal data
Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Nominal voltage range V: 380-480
Frequency in Hz: 50/60
Type of data definition: maximum load
Speed rpm: 1250
Power input in W: 2830
Current draw in A: 4.3
Max. back pressure in Pa: 240
Min. ambient temperature in C: -25
Max. ambient temperature in C: 60
