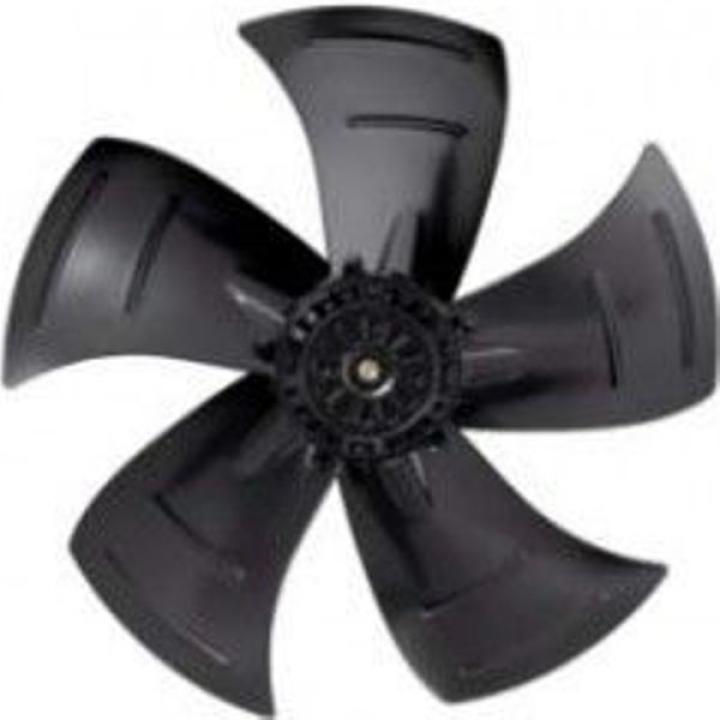

Ventilator axial Axial fan A4D500-AM01-03

0 stars: 0.00 din 0 pareri

126261 lei Lei
Cod produs
A4D500-AM01-03
Out Of stock
Descriere
Technical description:

Mass: 9.8kg
Size: 500 mm
Surface of rotor: Coated in black
Material of housing: Die-cast aluminium
Material of impeller: Press-fitted sheet steel blank, sprayed with PP plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing
Nominal data
Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Frequency in Hz: 50
Type of data definition: maximum load
Air flow m3/h: 5985
Speed rpm: 1350
Power input in W: 1050
Current draw in A: 1.35
Max. back pressure in Pa: 10
Min. ambient temperature in C: -40
Max. ambient temperature in C: 65
