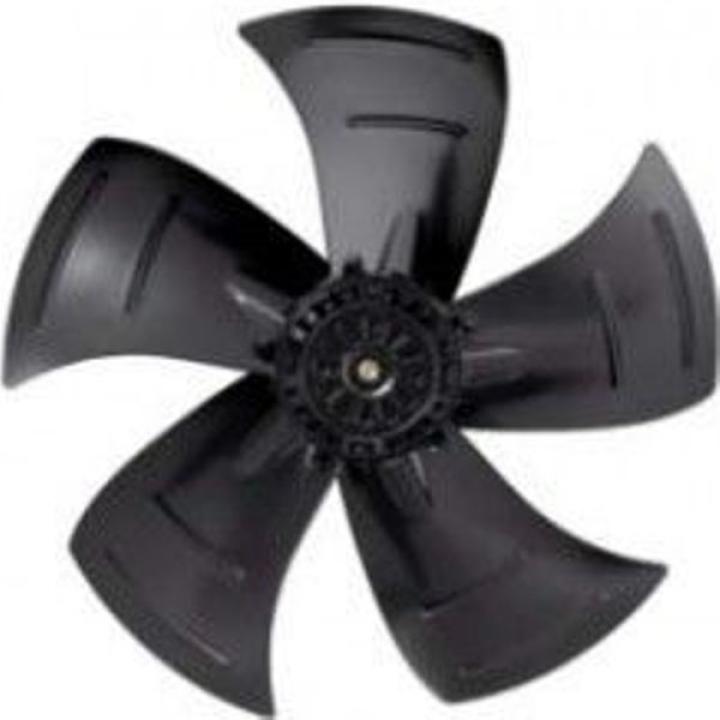

Ventilator axial A4E350-AN02-01

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
A4E350-AN02-01
Out Of stock
Descriere
*Price quotation uppon request!*

Technical description:

Mass: 3.5kg
Size: 350 mm
Surface of rotor: Coated in black
Material of housing: Die-cast aluminium
Material of impeller: Press-fitted sheet steel blank, sprayed with PP plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing
Nominal data
Phase: 1~
Type of voltage: AC
Nominal voltage in V: 230
Frequency in Hz: 50
Type of data definition: maximum load
Air flow m3/h: 2160
Speed rpm: 1340
Power input in W: 165
Current draw in A: 0.75
Max. back pressure in Pa: 90
Min. ambient temperature in C: -25
Max. ambient temperature in C: 65
