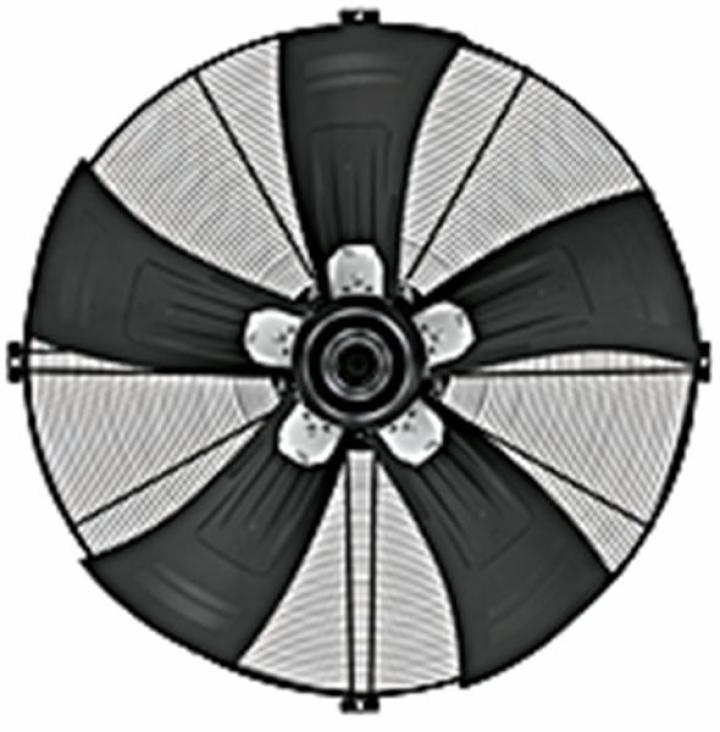

Ventilator axial S8E500-AJ03-01

*Price quotation uppon request!*

Technical description:

Mass:11.8kg
Size: 500 mm
Surface of rotor: Coated in black
Material of terminal box: Die-cast aluminium
Material of blades:Press-fitted sheet steel blank, sprayed with PP plastic
Material of guard grille: Steel, phosphated and coated in black plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing

Nominal data:

Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Frequency in Hz: 50
Type of data definition: max. load
Air flow m3/h: 4500
Speed rpm: 665
Power input in W: 130
Current draw in A: 0.59
Max. back pressure in Pa: 35
Min. ambient temperature in C: -40
Max. ambient temperature in C: 65
