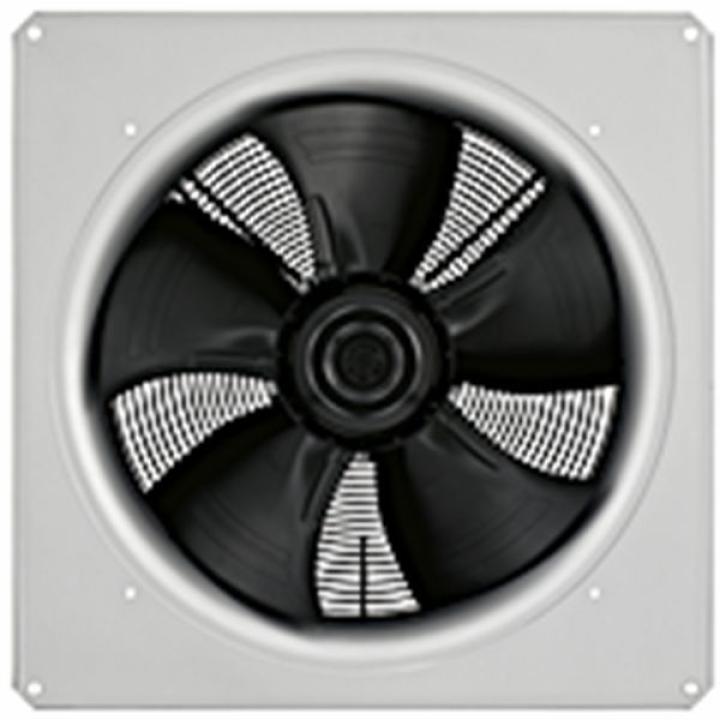

Ventilator axial W3G350-CG03-32

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
W3G350-CG03-32
Out Of stock
Descriere
*Price quotation uppon request!*

Technical description:

Mass:4.6kg
Size: 350 mm
Surface of rotor: Coated in black
Material of terminal box: Die-cast aluminium
Material of blades:Press-fitted sheet steel blank, sprayed with PP plastic
Material of guard grille: Steel, phosphated and coated in black plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing

Nominal data:

Phase: 1~
Type of voltage: AC
Nominal voltage in V: 230
Frequency in Hz: 50/60
Type of data definition: max. load
Air flow m3/h: 1795
Speed rpm: 1040
Power input in W: 73
Current draw in A: 0.65
Max. back pressure in Pa: 55
Min. ambient temperature in C: -25
Max. ambient temperature in C: 60
