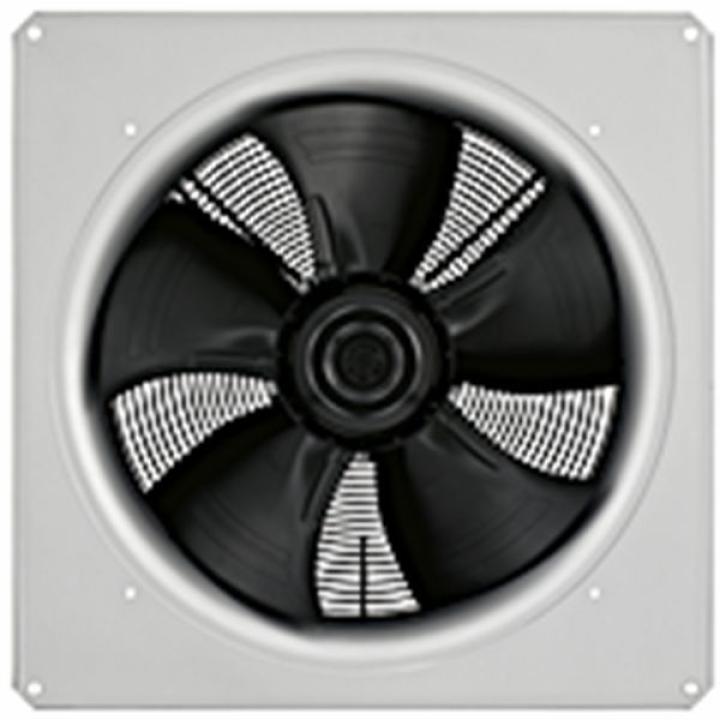

Ventilator axial W8D630-GN01-01

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
W8D630-GN01-01
Out Of stock
Descriere
*Price quotation uppon request!*

Technical description:

Mass:27.4kg
Size: 630 mm
Surface of rotor: Coated in black
Material of terminal box: Die-cast aluminium
Material of blades:Press-fitted sheet steel blank, sprayed with PP plastic
Material of guard grille: Steel, phosphated and coated in black plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing

Nominal data:

Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Frequency in Hz: 50
Type of data definition: max. load
Air flow m3/h: 5255
Speed rpm: 520
Power imput in W: 190
Current draw in A: 0.39
Max. back pressure in Pa: 36
Min. ambient temperature in C: -40
Max. ambient temperature in C: 65
