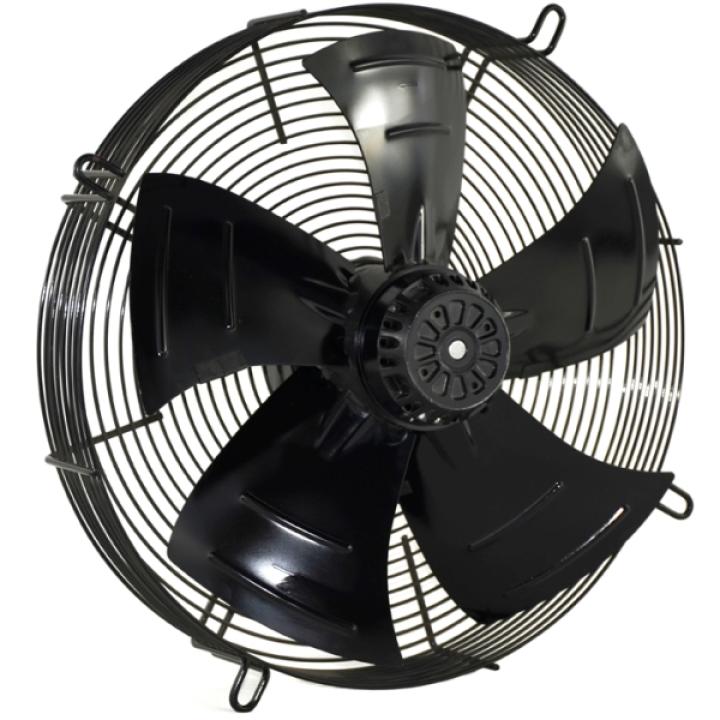

Ventilator axial S6D560-AJ03-01

Technical description:

Weight 12.3 kg
Fan size 560 mm
Rotor surface Cast in aluminum
Terminal box material PP plastic
Blade material Sheet aluminum insert, sprayed with PP plastic
Guard grille material Steel, coated with black plastic (RAL 9005)
Number of blades 5
Blade pitch 0
Airflow direction "V"
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP54
Insulation class "F"
Moisture (F) / Environmental (H)
protection class F3-1
Max. permitted ambient temp. for motor (transport/storage): + 80 C
Min. permitted ambient temp. for motor (transport/storage): - 40 C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC 60990
Motor protection Thermal overload protector (TOP) with basic insulation
With cable Axial
Protection class I (with customer connection of protective earth)
Conformity with standards EN 61800-5-1
Approval CCC; EAC; VD

Nominal data:

Type S6D560-AJ03-01
Motor M6D110-EF
Phase 3~ 3~
Nominal voltage VAC 400 400
Wiring Y
Frequency Hz 50 50
Method of obtaining data ml ml
Valid for approval/standard - -
Speed (rpm) min-1 870 660
Power consumption W 450 280
Current draw A 0.88 0.48
Max. back pressure Pa 75 43
Max. back pressure inH2O 0.3 0.17
Min. ambient temperature C -40 -40
Max. ambient temperature C 70 70
Starting current A 2.5 0.85
