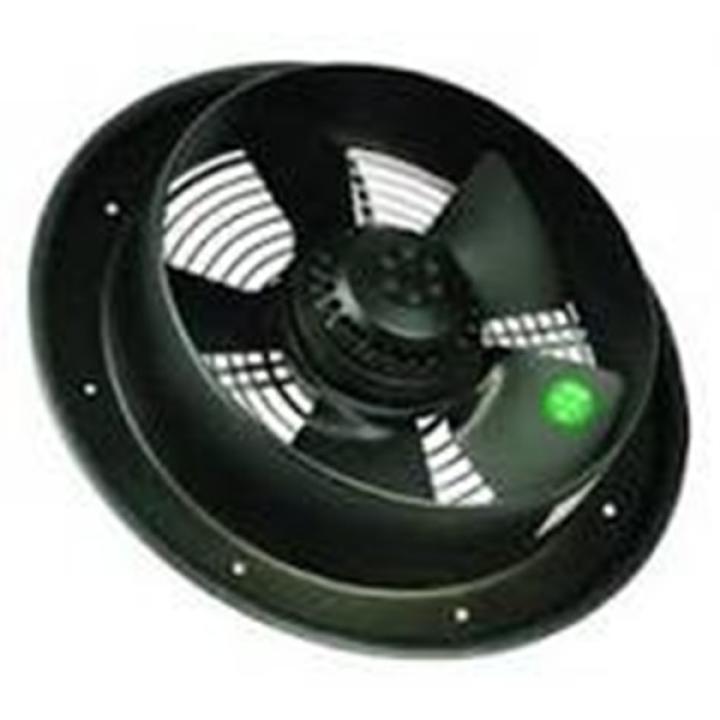

Ventilator axial W4E450-CO09-01

Technical description:
Weight 12.7 kg
Fan size 450 mm
Rotor surface Painted black
Terminal box material ABS plastic, black
Blade material Press-fitted sheet steel blank, sprayed with PP plastic
Fan housing material Sheet steel, pre-galvanized and coated with black plastic
Guard grille material Steel, phosphated and coated with black plastic
Number of blades 5
Airflow direction "V"
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP54
Insulation class "F"
Moisture (F) / Environmental (H) protection class F4-1
Max. permitted ambient temp. for motor (transport/storage) +80 C
Min. permitted ambient temp. for motor (transport/storage) -40 C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) = 3,5 mA
Electrical hookup Via terminal box, capacitor integrated and connected
Motor protection Thermal overload protector (TOP) with basic insulation
Protection class I (with customer connection of protective earth)
Motor capacitor according to EN 60252-1 in safety protection class S0
Conformity with standards EN 60034-1 (2004) / CE
Approval CCC
