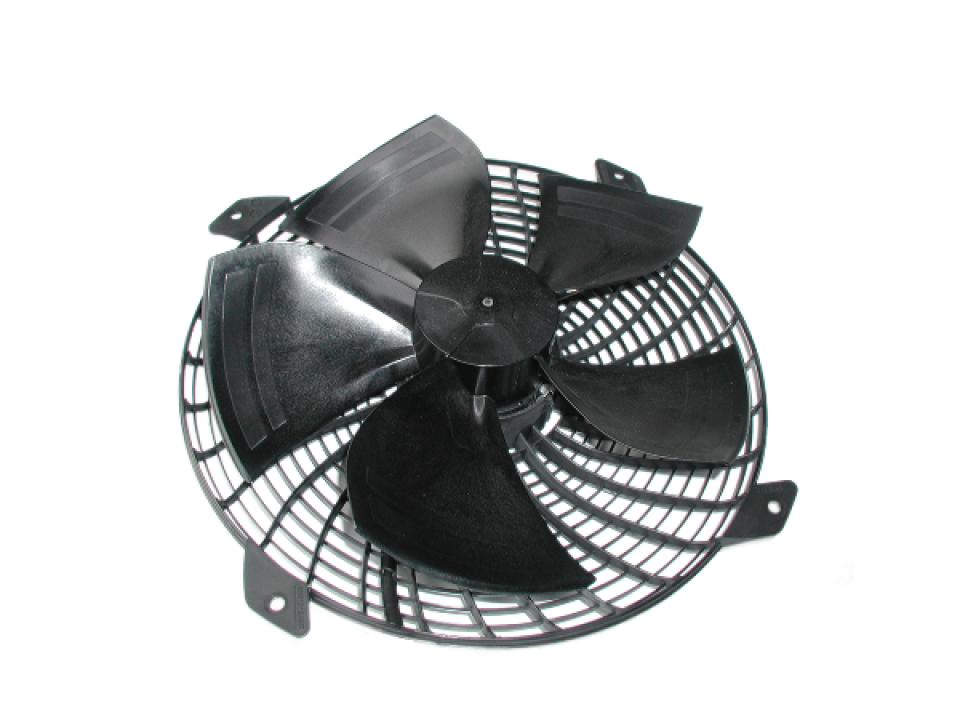

Ventilator axial Axial fan S4D300-AS34-02

0 stars: 0.00 din 0 pareri

77768 lei Lei
Cod produs
S4D300-AS34-02
Out Of stock
Descriere
Technical description:

Mass:2.4kg
Size: 300 mm
Surface of rotor: Coated in black
Material of terminal box: Die-cast aluminium
Material of blades:Press-fitted sheet steel blank, sprayed with PP plastic
Material of guard grille: Steel, phosphated and coated in black plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing
Plus grille and frame!

Nominal data:

Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Frequency in Hz: 50
Type of data definition: max. load
Air flow m3/h: -
Speed rpm: 1300
Power input in W: 68
Current draw in A: 0.14
Max. back pressure in Pa: 60
Min. ambient temperature in C: -25
Max. ambient temperature in C: 60
