Ventilator Atex / HC-35-2T/H / EXII2G EX-E

0 stars: 0.00 din 0 pareri

31158 lei Lei
Cod produs
ATEX / HC-35-2T/H / EXII2G EX-E
Out Of stock
Descriere

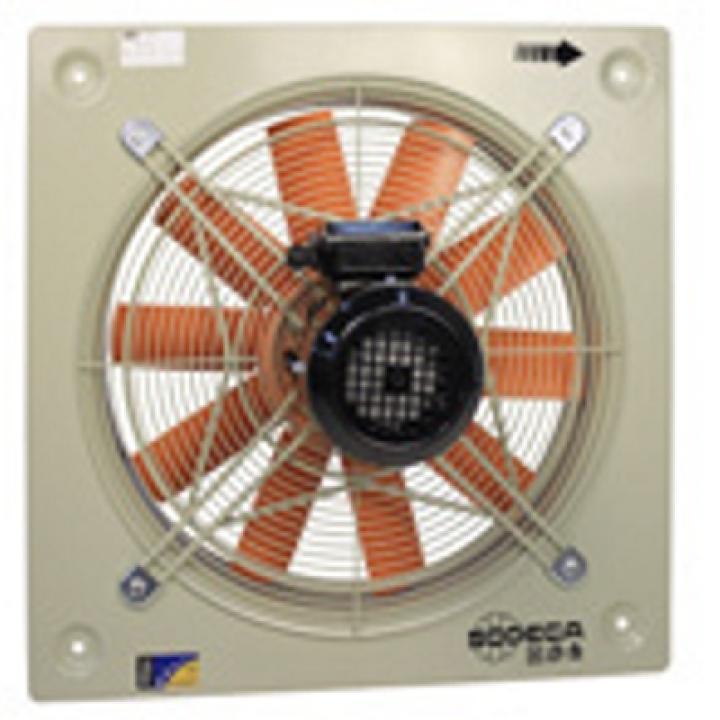

Atex / HC-35-2T/H / EXII2G EX-E Axial wall fan

Diameter (mm): 350

Motor power (W): 180
Number of pole: 2P
Supply (V): 400
Speed (rpm): 2700

Max flow (m3/h): 6050

Max admissible current (A): 1.20

Weight (kg): 8

Dimensions (mm):
A= 330

B= 275

C= 262
D= 260
E= 236.5

G= 11
H= 56
J= 8.5
K= 310.
