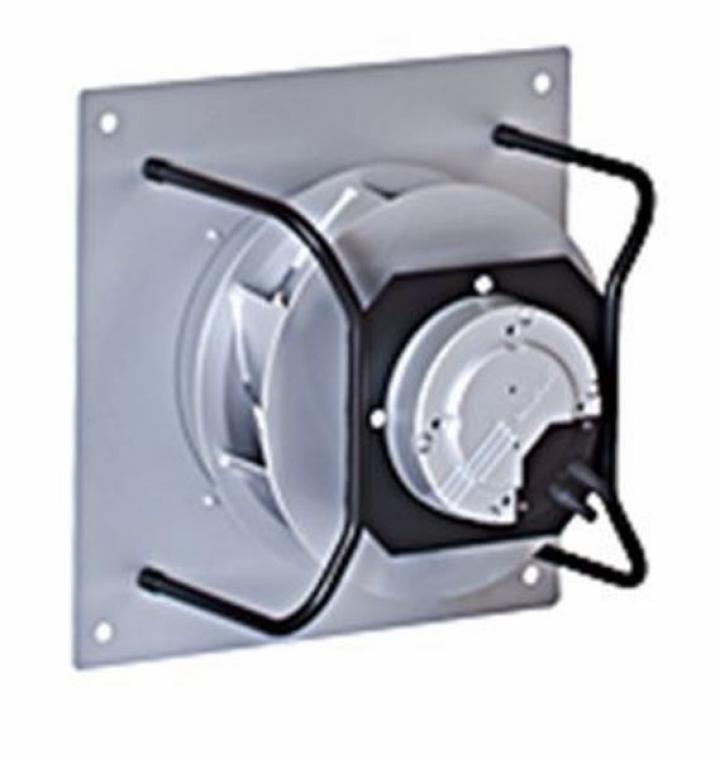

Ventilator centrifugal K3G355-AY43-22

Technical description:

Mass: 23.50 kg
Size: 355 mm
Surface of rotor: Coated in black
Material of impeller/Housing material: Aluminium sheet, white plastic-coated/Die-cast aluminium, coated in black
Number of blades: 7
Direction of rotation: Clockwise, viewed toward rotor
Class of protection: IP 54
Insulation class: "B"
Humidity class: F4-1
Max. permissible ambient motor temp. (transp./ storage): + 80 C
Min. permissible ambient motor temp. (transp./storage): - 40

Nominal data:

Phase: 1~

Type of voltage: AC

Nominal voltage: 230V

Frequency: 50/60 Hz

Type of data definition: maximum load

Air flow: 3755 m3/h

Speed: 2450 rpm

Power input: 1400 W

Current draw: 6.0 A

Min. ambient temperature: -25 C

Max. ambient temperature: 50 C
