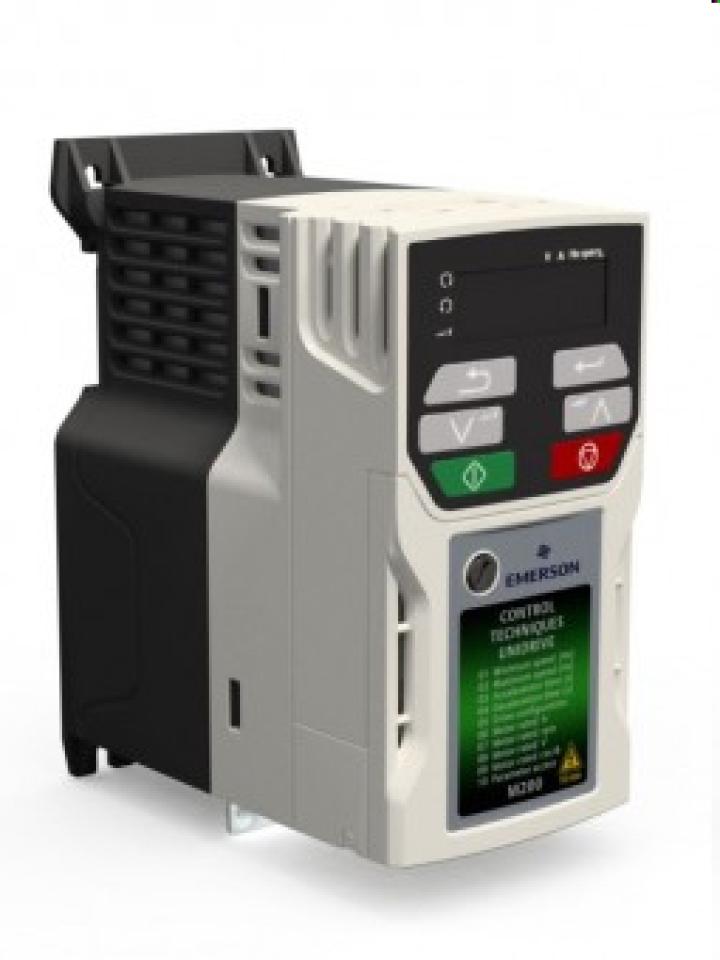

Controler Speed Frequency Control M200 0.75kW

Conventional surface and DIN rail mounting (Up to 1.5 kW).
Useful parameter guide on drive front panel.
Easy-to-disconnect internal EMC filter.
User-friendly power connections.
Robust cable management system providing grounding point for shielded control and power cables.
System Integration (SI) option module.
System Integration (SI) module slot for communications, fieldbus and additional I/O options (frame size 2 and upwards).

Input supply: 380-480 Vac 10%
Output supply: 3 x 380 Vac
Rated power (kW): 0.75
Max current intensity (A): 2.3
Frame size: 2
Weight (kg): 1.3

Keypad and display
The keypad and display provide information to the user regarding the operating status of the drive and trip codes, and provide the means for changing parameters, stopping and starting the drive, and the ability to perform a drive reset.
(1) The Enter button is used to enter parameter view or edit mode, or to accept a parameter edit.
(2 / 5) The Navigation keys can be used to select individual parameters or to edit parameter values.
(3) The Stop / Reset key is used to stop and reset the drive in keypad mode. It can also be used to reset the drive in terminal mode.
(4) The Start key is used to start the drive in keypad mode.
(6) The Escape key is used to exit from the parameter edit / view mode.
