Clapete antifoc Circular 100 CR125+

0 stars: 0.00 din 0 pareri

62464 lei Lei
Cod produs
CR120+ Ø125
Out Of stock
Descriere

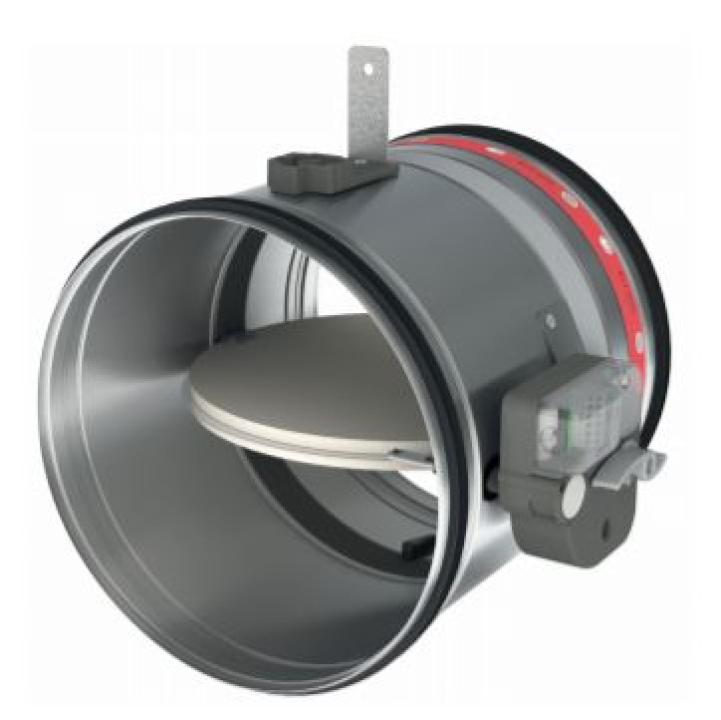

Circular fire dampers with a fire resistance of 120 minutes. When the temperature in the damper rises above 72 C the fusible link will break and the damper will close. When closed, the expanding material around the fireblade will swell and assure a fire and air-tight seal against hot air and smoke. The tunnel is made out of galvanized steel. The CR120 + MFUS fire dampers have a manual operating mechanism with indication of the blade position

d (mm) = 125

Galvanized steel tunnel with rubber duct sealing
Fibersilicate fireproof blade
Intumescent strip

Manual control mechanism MFUS with fusible link 72 C

CONSTRUCTION

1. Refractory casing made of galvanised steel
2. Damper blade 20 mm
3. Operating mechanism
4. Rubber sealing ring
5. Intumescent strip
6. Mounting plate for thermo-electrical fuse (not used on manually controlled dampers)
7. Positioning plate
8. Sealing ring damper blade
