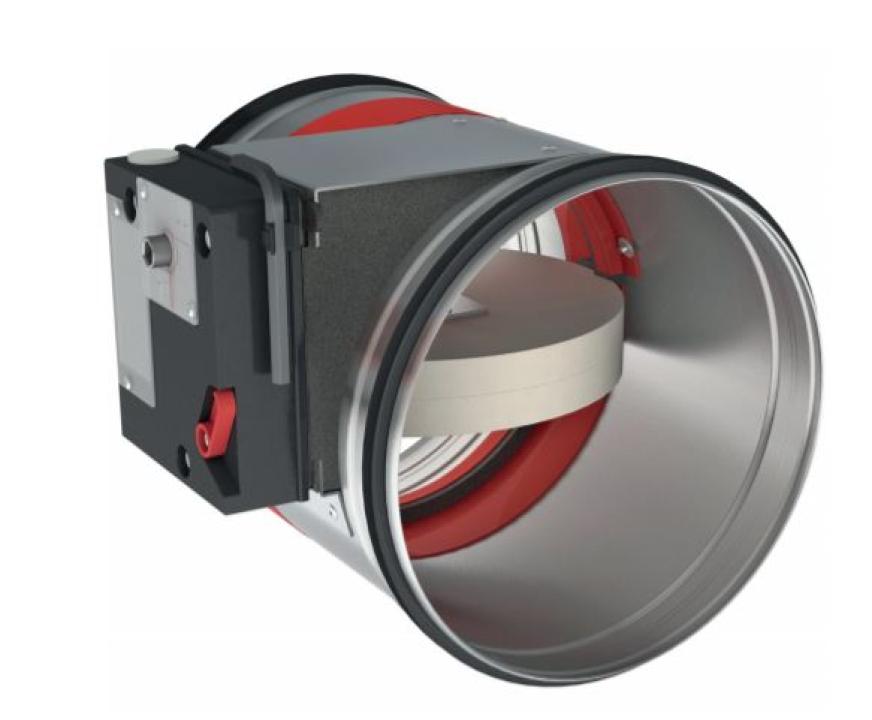

Clapete antifoc Circular 630 CR2+

0 stars: 0.00 din 0 pareri

182491 lei Lei
Cod produs
CR2+ Ø630
Out Of stock
Descriere
Circular fire dampers with a fire resistance of 120 minutes. When the temperature in the damper rises above 72 C the fusible link will break and the damper will close. When closed, the expanding material around the fireblade will swell and assure a fire and air-tight seal against hot air and smoke. The tunnel is made out of galvanized steel. The CR2 + CFTH fire dampers have a manual operating mechanism with indication of the blade position.

d (mm) = 630

Galvanized steel tunnel
Fireproof blade in fibersilicate
Intumescent strip around the valve
Manual control mechanism CFTH with fusible link 72 C

CONSTRUCTION

1. Refractory casing (made out of galvanised steel)
2. Damper blade
3. Operating mechanism
4. Sealing cold smoke
5. Blade bumper
6. Intumesnt strip
7. Fusible link 72C
8. Rubber sealing ring
9. Handle for deactivation
10. Allen key for arming
