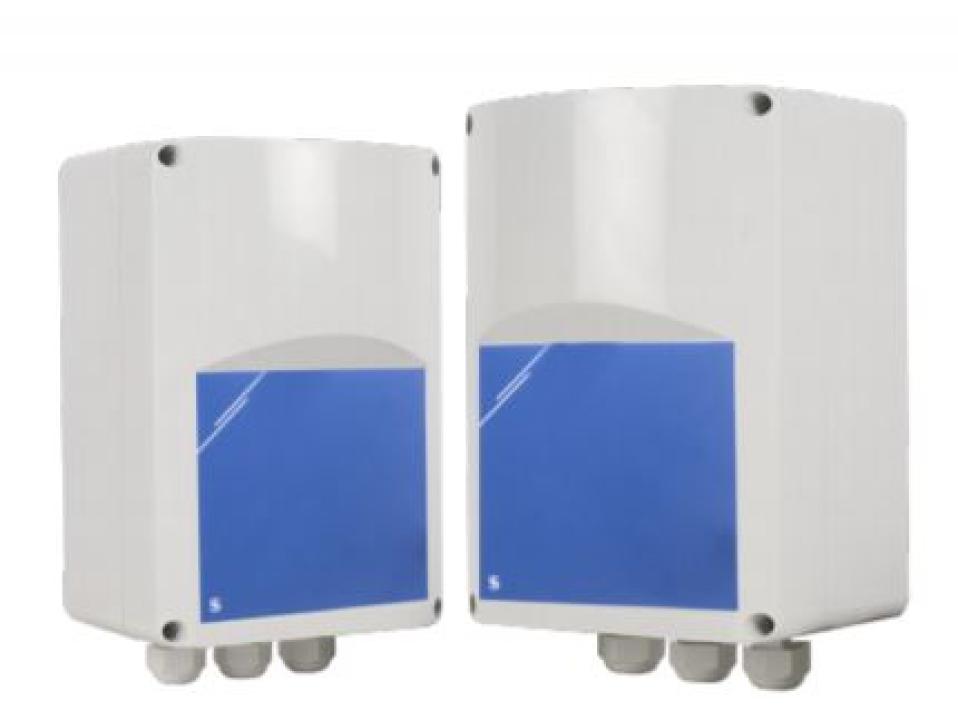

Transformator Remote switched 230V transformer RTR-1-75L22

0 stars: 0.00 din 0 pareri

68378 lei Lei
Cod produs
RTR-1-75L22
Out Of stock
Descriere
The RTR-1 series of transformer fan speed controllers regulate the rotational speed of single-phase voltage controllable motors by varying the output voltage. They are equipped with an auto-transformer and control the speed manually in steps via a remote device, e.g. a switch or thermostat. The technology used provides a regulated output voltage with a perfect sinusoidal shape.

Supply: 230 VAC / 50?60 Hz
Unregulated output: 230 VAC, 2 A
Protection standard: IP54
Temperature: -20 35 C
Rel. humidity: 5 95 % rH
Rated max. current (A): 7.5
Fuse (5*20 mm): F: T-12,5 A-H
I (A): 7.5

DIMENSIONS (mm):

A=200
B=305
C=140
D=183
E=236

FEATURES

? Wide power range

? Transformer taps directly connected to the terminal block

? Remote fan speed control via external device (e.g. Sentera?s SMT-1-30-4C switch)
