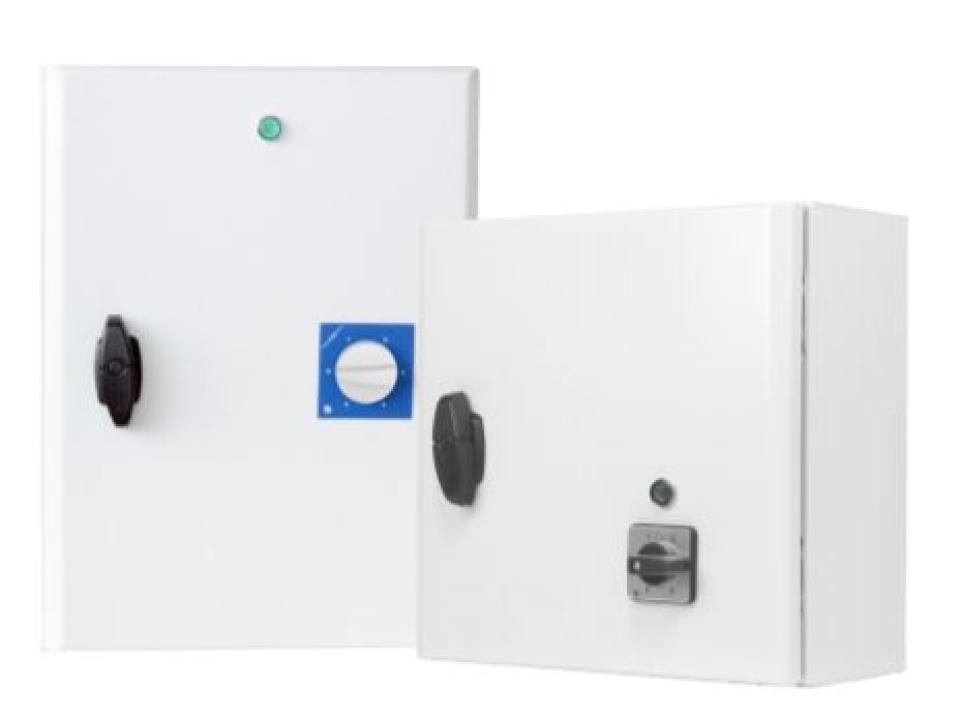

Ventilator 3 phase 400V transformer with TK STRS4140L50

0 stars: 0.00 din 0 pareri

374143 lei Lei
Cod produs
STRS4140L50
Out Of stock
Descriere
The STRS4 series of transformer fan speed controllers regulate the rotational speed of three-phase voltage controllable motors by varying the output voltage. They are equipped with auto-transformers and control the speed manually in five steps. They feature TK monitoring for thermal motor protection. The used technology provides a regulated output voltage with a perfect sinusoidal shape.

Supply: 230 VAC / 50x60 Hz
Unregulated output: 230 VAC, 2 A
Protection standard: IP54
Temperature: -20x35 C
Rel. humidity: 5x95 % rH
Rated max. current (A): 14
I (A): 14

DIMENSIONS (mm):

A=300
B=325
C=185
D=255
E=255

Wide power range: 1,2 A?14,0 A

5-step rotary switch for manual control plus off-position

LED status indication

Manual restart after power failure or TK failure

TK monitoring for thermal motor protection
