Ventilator cu curea Belt fan CDXRT-355-7.5

0 stars: 0.00 din 0 pareri

747851 lei Lei
Cod produs
CDXRT-355-7.5
Out Of stock
Descriere

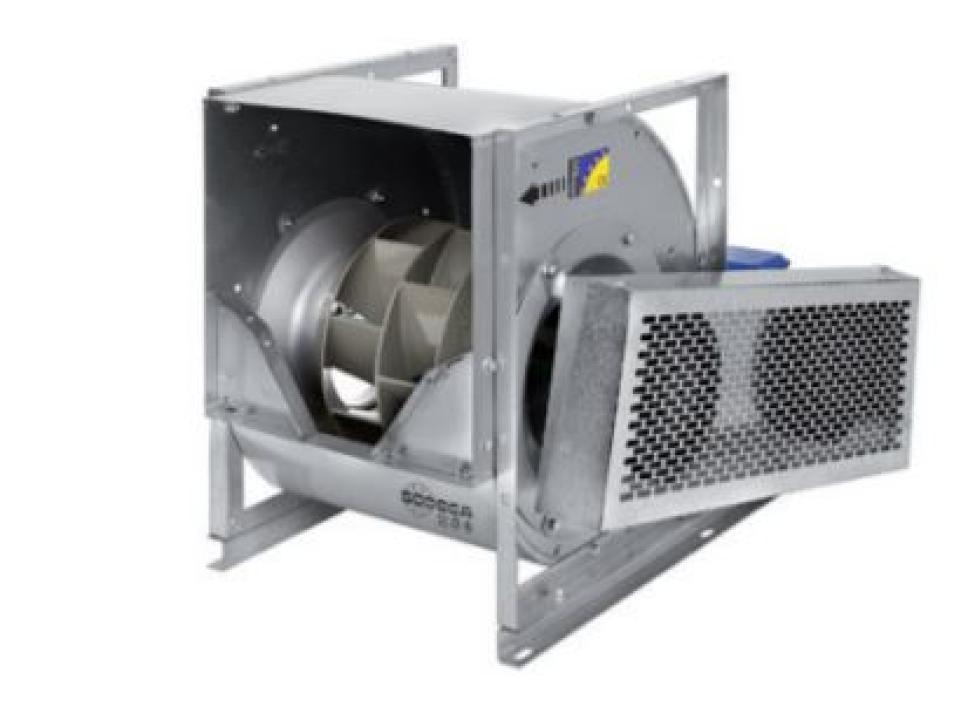

Belt-driven double-inlet centrifugal fans fitted with electric motors, a set of pulleys, belts, protectors
and impellers with backward-curved impeller.

Power supply: 230/400V 50Hz
Impeller size (mm): 355
Max. speed
(r/min): 2800
Max. admissible current: 10.30

Max. installed
power
(kW): 5.50
Maximum
flow rate
(m/h): 15270

Sound
pressure
level (dB(A)): 83

Air temperature
(C)
min./max.: -20/+60
Approx.
weight
(kg): 148

DIMENSIONS (mm):

A = 578
B = 715
C = 453

K= 700
V = 1110
X = 533

FEATURES
Fan:
? Galvanised sheet steel casing.

? Backward-curved impeller made of galvanised sheet steel.

Motor:
? Class F motors with ball bearings and IP55 protection.

? Three-phase 230/400 V-50 Hz (up to 4 kW) and 400/690 V-50 Hz
(powers higher than 4 kW).

? IE3 efficiency motors for powers equal to or greater than
0.75 kW except single-phase, 2-speed and 8-pole.

? Maximum temperature of air to be carried: -20 �C + 60 �C
