Ventilator cu curea TSAT-20/10-4

0 stars: 0.00 din 0 pareri

762368 lei Lei
Cod produs
TSAT-20/10-4
Out Of stock
Descriere

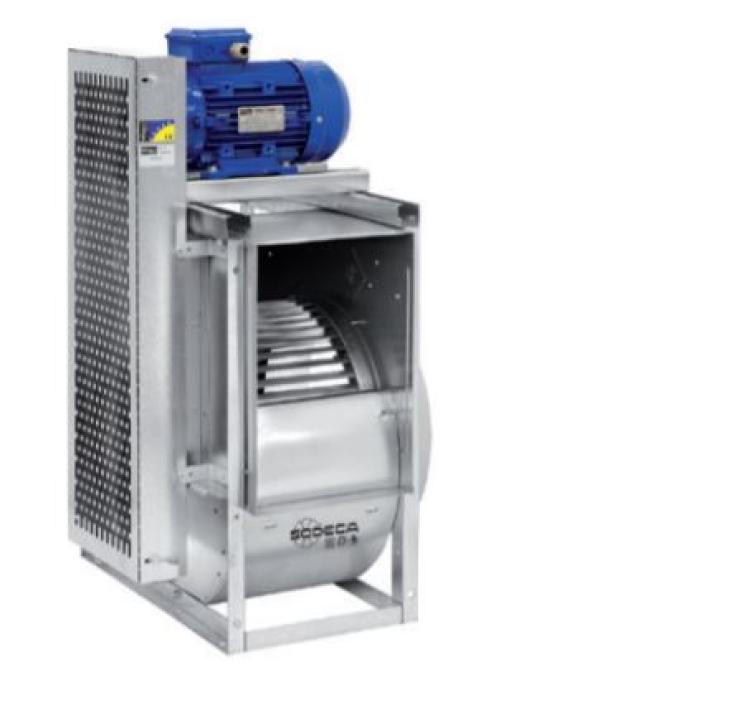

Single inlet, belt-driven centrifugal fans fitted with electric motors, a set of pulleys and belts, protectors and forward-curved impeller.

Power supply: 230/400V 50Hz
Impeller size (inch): 20/10
Max. speed
(r/min): 750
Max. admissible current: 10.70
Max. installed
power
(kW): 3.00
Maximum
flow rate
(m/h): 11500

Sound
pressure
level (dB(A)): 70

Approx.
weight
(kg): 216

DIMENSIONS (mm):

A = 843
B = 963
C = 330
D = 575

K= 620
L = 603
X = 410

FEATURES
Fan:
? Galvanised sheet steel casing.

? Forward-curved impeller made of galvanised sheet steel.

Motor:
? IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

? Class F motors with ball bearings and IP55 protection.

? Three-phase 230/400 V-50 Hz (up to 4 kW) and 400/690 V-50 Hz (powers higher than 4 kW).

? Maximum temperature of air to be carried: TSA and TSAT: -20 C +85 C CJTSA: -20 C + 60 C
