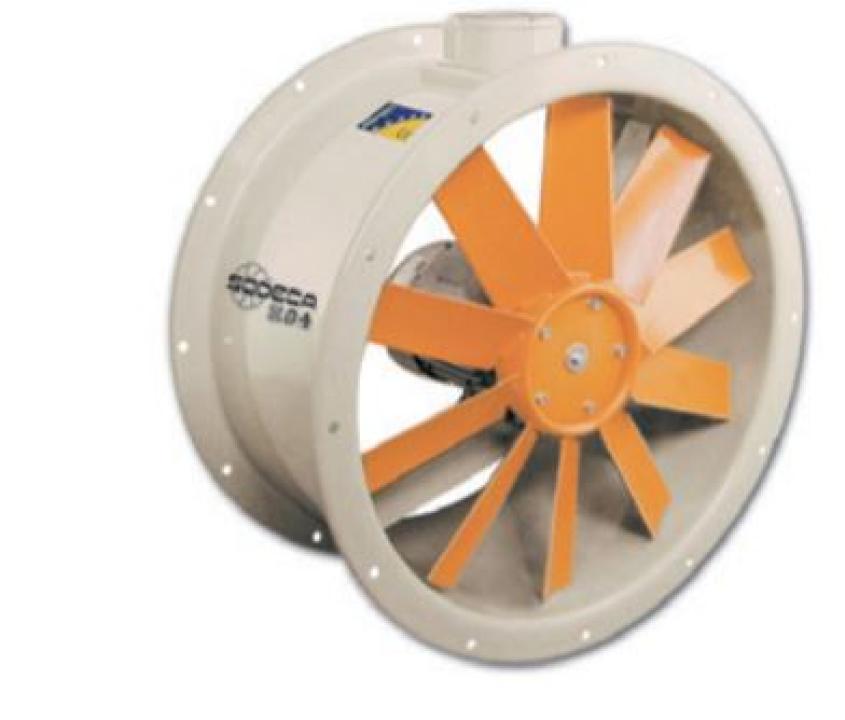

Ventilator axial duct ventilator HCT-100-4T-10/AL

Extremely robust wall-mounted tubular axial fan, with aluminium impeller.

Aluminium impeller diameter (cm): 100

Number of motor poles: 4
Three-phase
Supply: 230V -50Hz

Max. speed
(r/min): 1465

Max. admissible current
(A): 13.90
Installed
power (kW): 7.50

Maximum flow rate (m/h): 58500

Sound
pressure level (db(A)): 93
Weight (kg): 147

DIMENSIONS (mm):

A = 1115
B = 970
D = 1070
E = 1000
J = 15

FEATURES

? Airflow direction from motor to impeller.

? PL version in fiber glass reinforced
polyamide -6 rots

? HCT: Tubular casing in sheet steel with
external terminal box.

Motor:

? IE3 efficiency motors for powers
equal to or higher than 0.75kW except
single-phase, 2-speed and 8-pole.

? Class F motors with ball bearings, IP55
protection, except single-phase models
from size 45 to size 56, IP54 protection.
1 or 2 speeds, depending on model.
? Single-phase 230V-50Hz and
three-phase 230/400V-50Hz (up to 4kW)
and 400/690V-50Hz (powers higher than
4kW).

? Operating temperature: -25C+ 50C.
