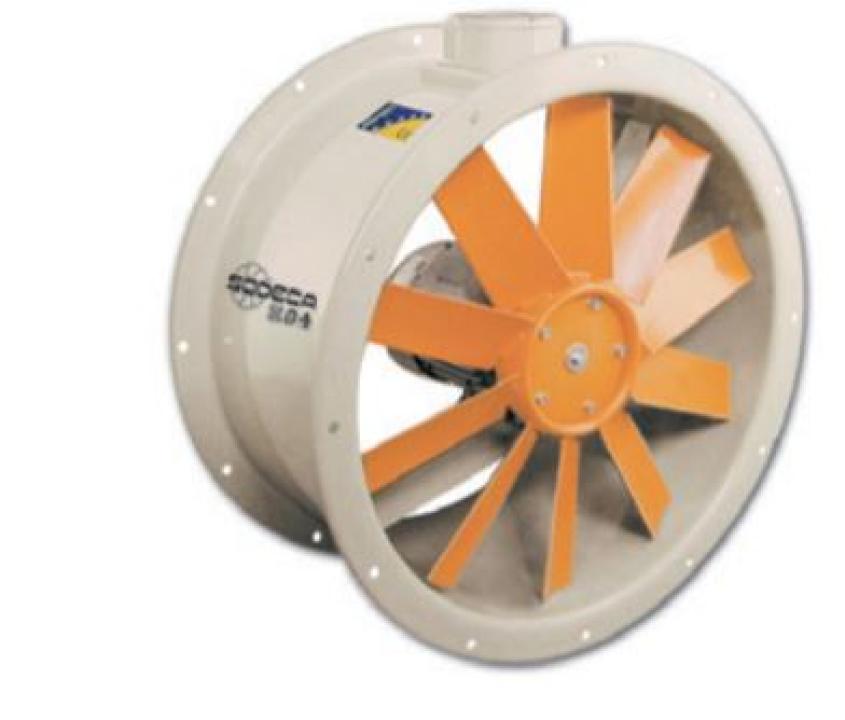

Ventilator axial duct HCT-100-6T-4/AL

Extremely robust wall-mounted tubular axial fan, with aluminium impeller.

Aluminium impeller diameter (cm): 100

Number of motor poles: 6
Three-phase Supply: 230V -50Hz

Max. speed (r/min): 970

Max. admissible current (A): 12.00
Installed power (kW): 3.00

Maximum flow rate (m/h): 46950

Sound pressure level (db(A)): 83
Weight (kg): 125

DIMENSIONS (mm):

A = 1115
B = 970
D = 1070
E = 1000
J = 15

FEATURES

Airflow direction from motor to impeller.

PL version in fiber glass reinforced polyamide -6 rots

HCT: Tubular casing in sheet steel with external terminal box.

Motor:

IE3 efficiency motors for powers equal to or higher than 0.75kW except single-phase, 2-speed and 8-pole.

Class F motors with ball bearings, IP55 protection, except single-phase models from size 45 to size 56, IP54 protection. 1 or 2 speeds, depending on model.
Single-phase 230V-50Hz and three-phase 230/400V-50Hz (up to 4kW) and 400/690V-50Hz (powers higher than 4kW).

Operating temperature: -25C+ 50C.
