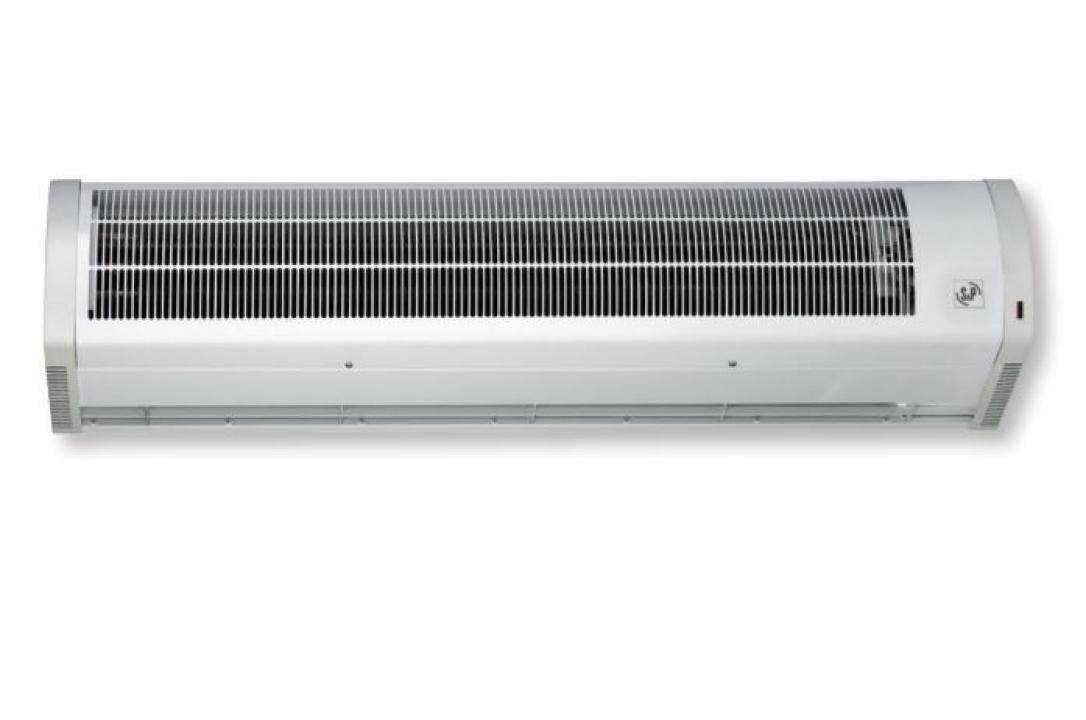

Aer conditionat Air curtain COR-9-1000 N RF

Designed for wall application in commercial or industrial environments.

Supply: 3N 400V / 50Hz
Heat
power
(kW): 4.5/9

Motor
power
(W): 100
Speeds: 3
Airflow at high speed (m/h): 1300
Airflow at medium speed (m/h): 1100

Airflow at low speed (m/h): 1000

Air
output
speed*
at 0,05 m
(m/s): 10
Maximum ?T at high speed (C): 20
Maximum ?T at medium speed (C): 24

Maximum ?T at low speed (�C): 26

Sound
pressure
level**
(dB(A)): 48

Abs.
current
(A): 13
Ambient /
Hot air: F/C
Weight
(kg): 16

Features:
-Can be fitted up to a height of 3 metres.
-High performance tangential propeller/
impeller giving a low sound level.
-Can be installed in series.
-Extra low speed in those fans that need a
higher output air temperature (warm air
versions)
