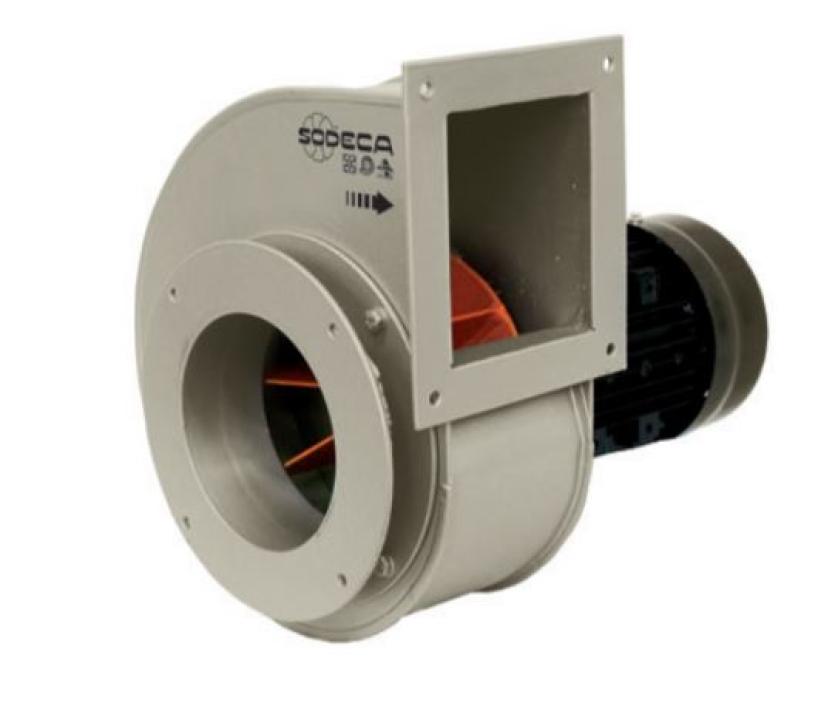

Ventilator particule Smoke and solid fan CMTS-616-2M/R

0 stars: 0.00 din 0 pareri

411377 lei Lei
Cod produs
CMTS-616-2M/R
Out Of stock
Descriere
Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying smoke and solid material.

Supply: 230/400V 50Hz
Number of motor poles: 2
Speed (rpm): 2810

I max. (A): 3.49

Power (kW): 0.55

Air flow max. (m/h): 802

Sound (db(A)): 69

Weight (Kg): 10

Dimensions (mm):
A = 258
B1 = 297
C =377.5
H1 = 105.5

FEATURES:
Fan:

Sheet steel casing
Straight blade impeller made of sheet steel.

Motor:

IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

Class F motors with ball bearings and IP55 protection.

Three-phase 230/400 V - 50 Hz (up to 4 kW) and 400/690 V - 50 Hz (powers higher than 4 kW).

Maximum temperature of air to be carried: -20 C +120 C.
