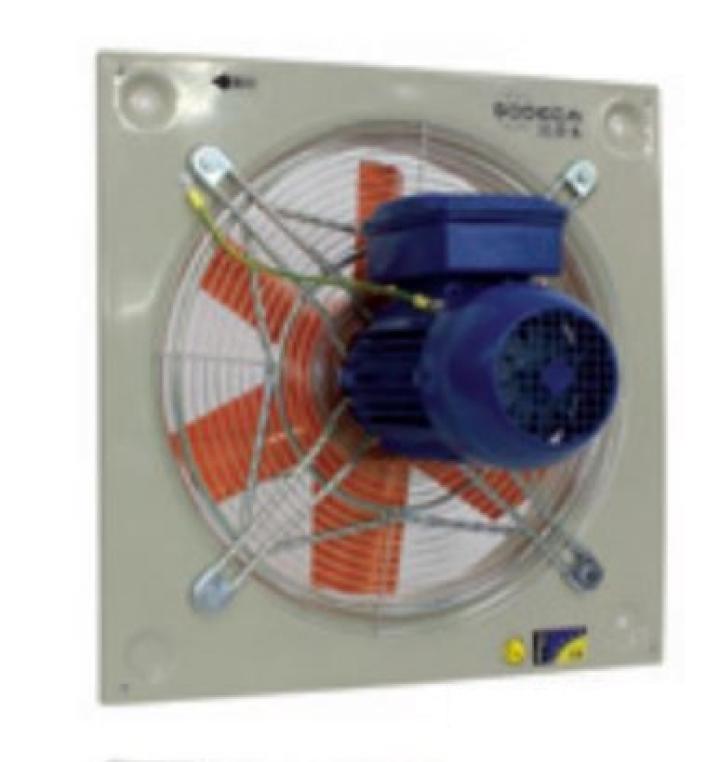

Ventilator Wall Axial Fan HC-45-6T/H / Atex / EXII2G Ex d

0 stars: 0.00 din 0 pareri

661572 lei Lei
Cod produs
HC-45-6T/H / ATEX / EXII2G Ex d
Out Of stock
Descriere
Wall-mounted axial fan with Atex certification.
Three-phase motor.

Power (kW): 0.25
Supply: 400V /50Hz
I max (A): 2.42
Air flow max. (m/h): 5150
Speed (rpm): 910
Sound pressure level dB(A): 57
Weight (Kg): 123

Dimensions (mm):
A = 665
B = 562
C = 516.5
D = 513
E = 351

FEATURES
Fan:

Impeller made from cast aluminium

Airflow direction from motor to impeller

Stuffing-box spark-proof included

Protection guard against contacts, in accordance with standard UNE-EN ISO 12499:2010 included in models 25 to 63, other models as accessory.

Support frame in sheet steel with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

Motor:

Class F motors with ball bearings and ATEX certification, Ex e explosion-proof and Ex d, Ex tc, or Ex tb flame-resistant

Three phase, 50Hz, 230/400V motors up to and including 4kW. 400/690V over 4kW

Fan working temperature: -20 C + 40 C

Finish:

Rust retardant finish with ATEX paint, containing no ferrous components, in polyester resin polymerised at 190 C, after phosphate free pre-treatment
