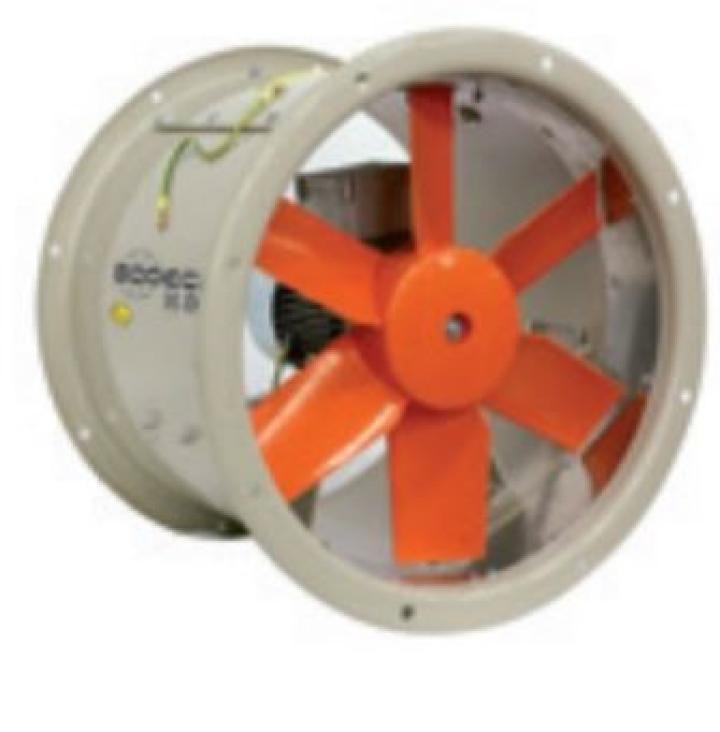

Ventilator Atex axial HCT-90-6T-4 / ATEX / EXII2G Ex e

0 stars: 0.00 din 0 pareri

2227068 lei Lei
Cod produs
HCT-90-6T-4 / ATEX / EXII2G Ex e
Out Of stock
Descriere
HCT/Atex: Robust long-cased axial fans with Atex certification

Three-phase motor.
Power (kW): 3.00
Supply: 400V /50Hz
I max (A): 8.50
Air flow max. (m/h): 40000
Speed (rpm): 940
Sound pressure level dB(A): 79
Weight (Kg): 102

Dimensions (mm):

A = 1015
B = 970
D = 900
E1 = 636

FEATURES

Fan:

- HCH/ATEX: Support ring in sheet steel with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

- HCT/ATEX: Sheet steel long casing with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

- Impeller made from cast aluminium

- Incorporates with inspection hatch (HCT)

- Airflow direction from motor to impeller

Motor:

- Class F motors with ball bearings and ATEX certification, Ex e explosion-proof and Ex d, Ex tc, or Ex tb flame-resistant

- Three phase, 50Hz, 230/400V motors up to and including 4kW. 400/690V over 4kW

- Fan working temperature: -20 C + 40 C

Finish:

- Rust retardant finish with ATEX paint, containing no ferrous components, in polyester resin polymerised at 190 C, after phosphate free pre-treatment
