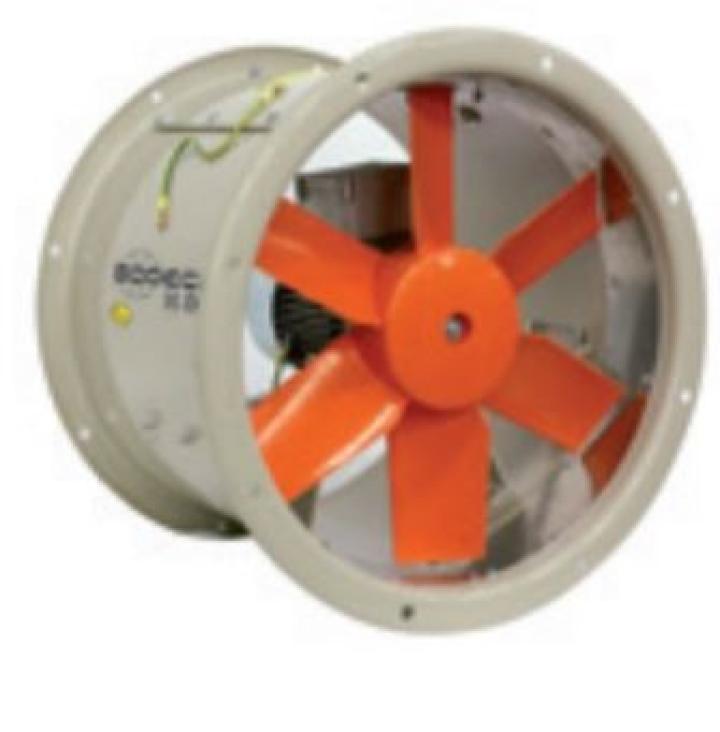

Ventilator Long-cased Axial HCT-100-4T-20 / ATEX / EXII2G

0 stars: 0.00 din 0 pareri

2755836 lei Lei
Cod produs
HCT-100-4T-20 / ATEX / EXII2G Ex e
Out Of stock
Descriere
HCT/ATEX: Robust long-cased axial fans with ATEX certification
Three-phase motor.

Power (kW): 15.00
Supply: 690V /50Hz
I max (A): 30.60
Air flow max. (m/h): 71850
Speed (rpm): 1450
Sound pressure level dB(A): 95
Weight (Kg): 178

Dimensions (mm):
A = 1115
B = 1070
D = 1000

E1 = 738

FEATURES
Fan:

HCH/ATEX: Support ring in sheet steel with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

? HCT/ATEX: Sheet steel long casing with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

? Impeller made from cast aluminium
? Incorporates with inspection hatch (HCT)

? Airflow direction from motor to impeller

Motor:

? Class F motors with ball bearings and ATEX certification, Ex e explosion-proof and Ex d, Ex tc, or Ex tb flame-resistant

? Three phase, 50Hz, 230/400V motors up to and including 4kW. 400/690V over 4kW

? Fan working temperature: -20C + 40C

Finish:

? Rust retardant finish with ATEX paint, containing no ferrous components, in polyester resin polymerised at 190C, after phosphate free pre-treatment.
