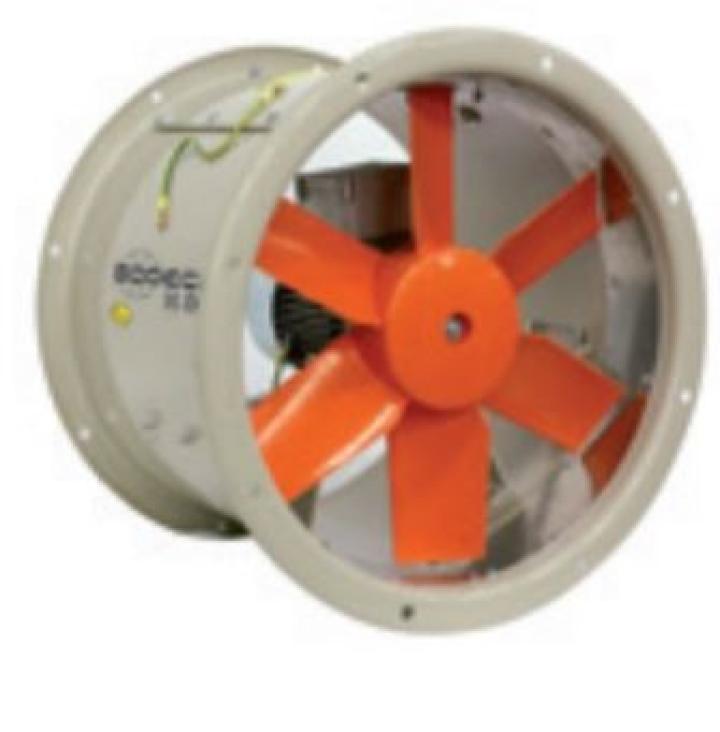

Ventilator Long-cased Axial HCT-56-4T-2 / ATEX / EXII2G Ex d

0 stars: 0.00 din 0 pareri

1211148 lei Lei
Cod produs
HCT-56-4T-2 / ATEX / EXII2G Ex d
Out Of stock
Descriere
HCT/ATEX: Robust long-cased axial fans with ATEX certification
Three-phase motor.

Power (kW): 1.50
Supply: 400V /50Hz
I max (A): 6.93
Air flow max. (m/h): 15300
Speed (rpm): 1400
Sound pressure level dB(A): 75
Weight (Kg): 59

Dimensions (mm):
A = 660
B = 620
D = 560

E1 = 400

FEATURES
Fan:

HCH/ATEX: Support ring in sheet steel with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

? HCT/ATEX: Sheet steel long casing with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

? Impeller made from cast aluminium
? Incorporates with inspection hatch (HCT)

? Airflow direction from motor to impeller

Motor:

? Class F motors with ball bearings and ATEX certification, Ex e explosion-proof and Ex d, Ex tc, or Ex tb flame-resistant

? Three phase, 50Hz, 230/400V motors up to and including 4kW. 400/690V over 4kW

? Fan working temperature: -20C + 40C

Finish:

? Rust retardant finish with ATEX paint, containing no ferrous components, in polyester resin polymerised at 190C, after phosphate free pre-treatment.
