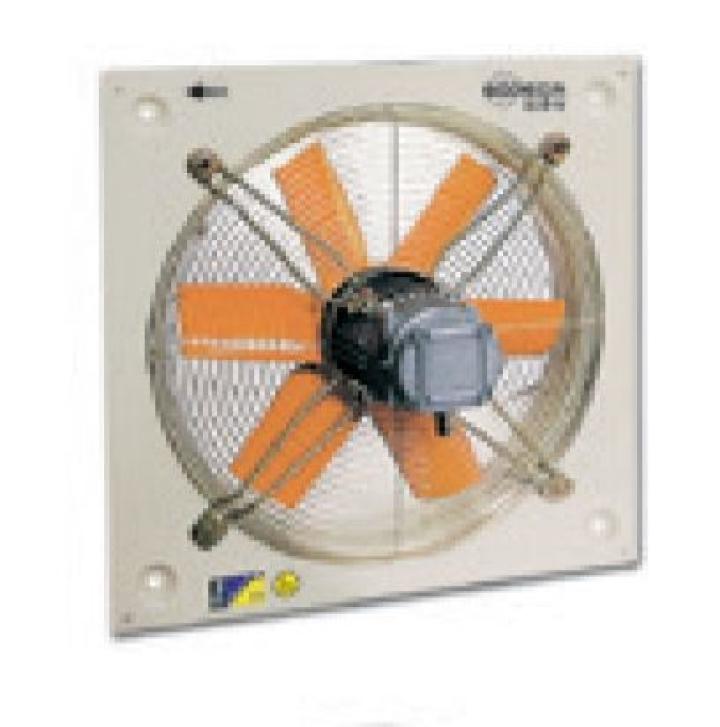

Ventilator Wall Axial Fan HCDF-40-4T / Atex / EXII2G Ex d

0 stars: 0.00 din 0 pareri

613836 lei Lei
Cod produs
HCDF-40-4T / ATEX / EXII2G Ex d
Out Of stock
Descriere
HCDF: Axial fans with square frame, with Atex Ex d certification Three-phase motor.

Power (kW): 0.25
Supply: 400V /50Hz
I max (A): 2.08
Air flow max. (m/h): 4400
Speed (rpm): 1370
Sound pressure level dB(A): 63
Weight (Kg): 12.5

Dimensions (mm):
A = 532
B = 452
D = 410

E = 335

FEATURES
Fan:

HCH/ATEX: Support ring in sheet steel with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

HCT/ATEX: Sheet steel long casing with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

Impeller made from cast aluminium
Incorporates with inspection hatch (HCT)

Airflow direction from motor to impeller

Motor:

Class F motors with ball bearings and ATEX certification, Ex e explosion-proof and Ex d, Ex tc, or Ex tb flame-resistant

Three phase, 50Hz, 230/400V motors up to and including 4kW. 400/690V over 4kW

Fan working temperature: -20C + 40C

Finish:

Rust retardant finish with ATEX paint, containing no ferrous components, in polyester resin polymerised at 190C, after phosphate free pre-treatment
