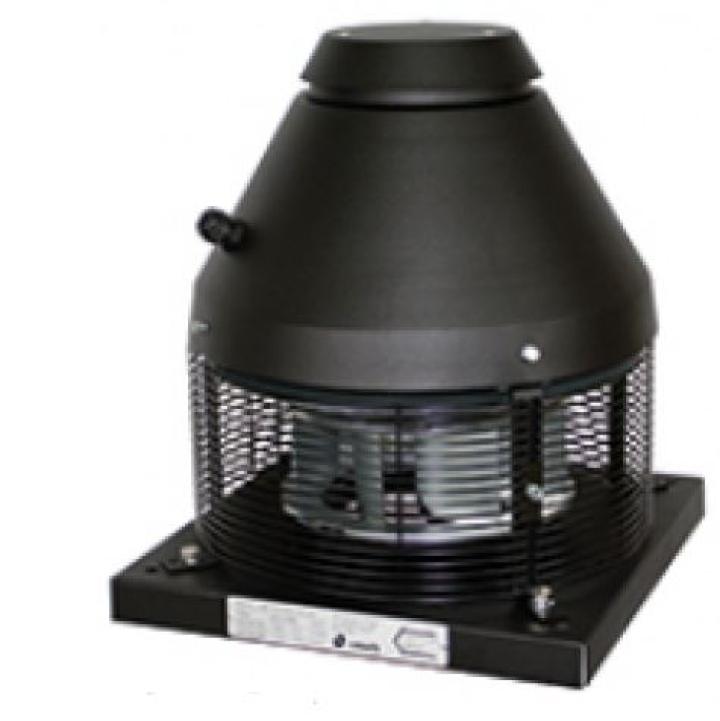

Ventilator acoperis Chimney roof fan 200 C

Centrifugal roof fan for fireplaces and barbecues

Manufacturing features
? Steel motor cover with hammered texture. Polyester powder coated in black colour.
? Backward curved impeller with self-cleaning aluminium blades, dynamically balanced (UNI ISO 1940, Point 1 - Class 6.3).
? Protection grid with anti-bird rings (in accordance with UNI ISO 13857 standard), made of electrically welded steel and black epoxy finishing coat.
? Base made of embossed steel, covered with epoxy to guarantee great resistance to long-term atmospheric agents.
? Aerodynamic shape for optimum performance, in one piece to optimize the air flow.
? Sub-frame for fixing the unit to the chimney.
? Equipped with steel safety wire for anchoring the appliance once installed.
? Class I and IP X4 asynchronous motor, with standard voltage 230V 50/50Hz, with thermal protector and ball bearings.

APPLICATIONS
?Specially designed for smoke extraction use at a continuous operating temperature up to 200 C in fireplaces and barbecues.

Diam inlet (mm): 170

Voltage (VAC): 230

Frequency (Hz): 50

Air flow max. (m/h): 750
Max. pressure (Pa): 175

Speed (rpm): 1400

Power (W): 120

Current (A): 0.5

Weight: 18Kg

Dimensions (mm):
A = 405, B = 410, C = 357, E = 38, F=518, G = 480
