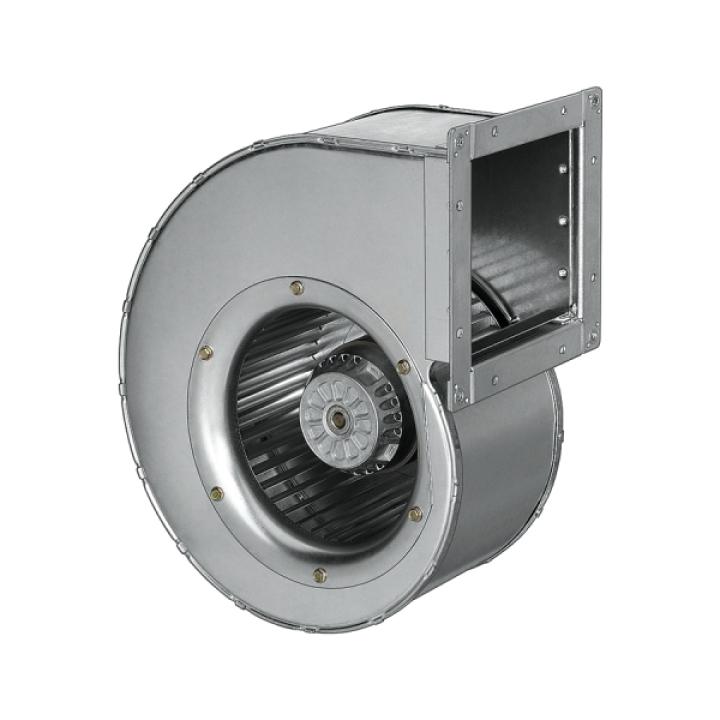

Ventilator AC centrifugal fan G4D180-FF20-01

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
G4D180-FF20-01
Out Of stock
Descriere
*Price quotation uppon request!*
Technical description:
Material: - Housing: Galvanised sheet steel
- Impeller: Galvanised sheet steel
- Rotor: Partial cast in aluminium
Direction of rotation: Clockwise,seen on rotor
Type of protection: IP44
Insulation class: "B"
Mounting position: Any
Condensate discharges: Rotor side
Mode of operation: Continuous operation (S1)
Bearings: Maintenance-free ball bearings
Nominal data:
Size: 180mm
Nominal voltage: 230/400 VAC
Frequency: 50 Hz
Air flow: 1010m3/h
Speed/rpm: 1330
Power input: 175 W
Current draw: 0.68/0.39 A
Capacitor F/VDB: ---
Sound pressure levle: 67 dB (A)
Min. back pressure Pa: 0
Ambient temperature in C: -25 to +60
Mass: 6 kg
