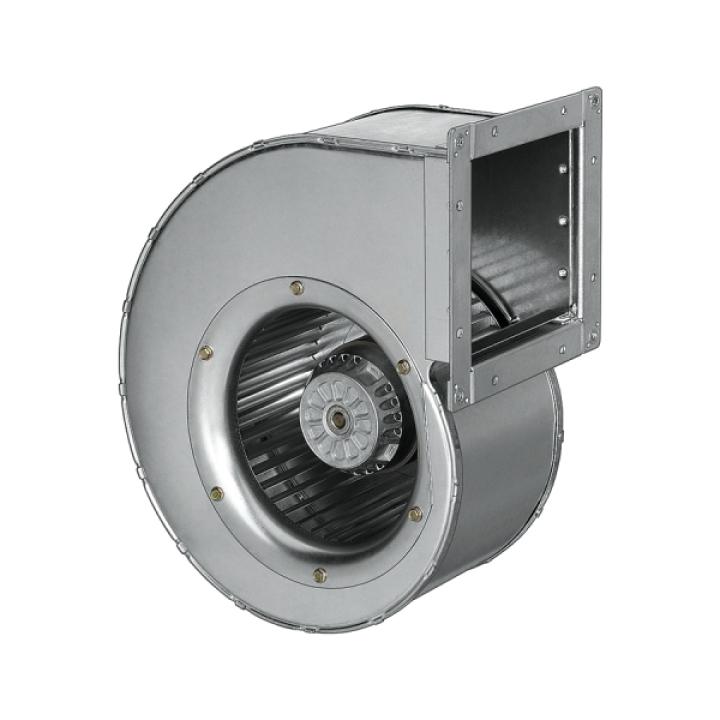

Ventilator AC centrifugal fan G4D250-EC10-03

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
G4D250-EC10-03
Out Of stock
Descriere
*Price quotation uppon request!*
Technical description:
Material: - Housing: Galvanised sheet steel
- Impeller: Galvanised sheet steel
- Rotor: Partial cast in aluminium
Direction of rotation: Clockwise,seen on rotor
Type of protection: IP54
Insulation class: "F"
Mounting position: Any
Condensate discharges: None
Mode of operation: Continuous operation (S1)
Bearings: Maintenance-free ball bearings
Nominal data:
Size: 250mm
Nominal voltage: 3p - 400 VAC
Frequency: 50 Hz
Air flow: 2640m3/h
Speed/rpm: 1280
Power input: 800 W
Current draw: 1.46 A
Capacitor F/VDB: ---
Sound pressure levle: ---
Min. back pressure Pa: 0
Ambient temperature in C: -40 to +50
Mass: 14.1 kg
