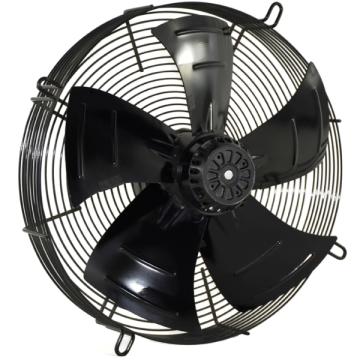

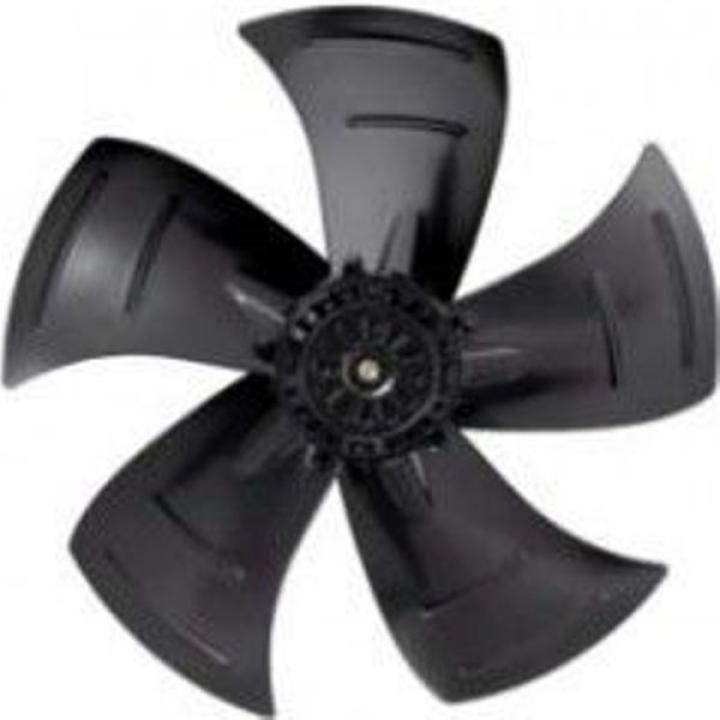

Ventilator axial A3G500-AM56-35

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
A3G500-AM56-35
Out Of stock
Descriere
*Price quotation uppon request!*
Technical description:
Mass: 7.6 kg
Size: 500 mm
Surface of rotor: passivated
Material of housing: Die-cast aluminium
Material of impeller: PP-GF40 plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing
Speed steps: 2
Nominal data
Phase: 1~
Type of voltage: AC
Nominal voltage in V: 230
Nominal voltage range V: 200-277
Frequency in Hz: 50/60
Type of data definition: maximum load
Speed rpm: 1420
Power input in W: 750
Current draw in A: 3.4
Max. back pressure in Pa: 175
Min. ambient temperature inC: -25
Max. ambient temperature inC: 60
