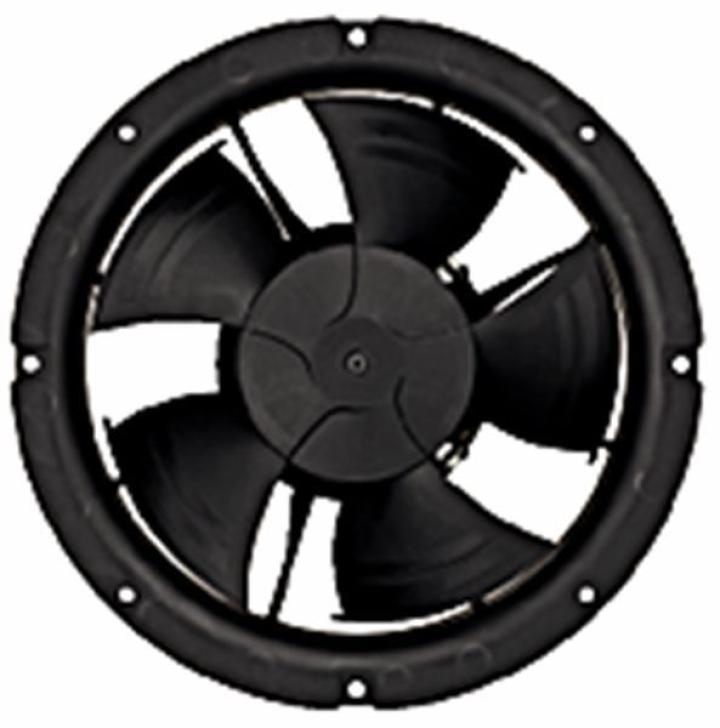

Ventilator axial W1G200-EC87-25

0 stars: 0.00 din 0 pareri

78946 lei Lei
Cod produs
W1G200-EC87-25
Out Of stock
Descriere
Technical description:
Mass:1kg
Size: 200 mm
Surface of rotor: Coated in black
Material of terminal box: Die-cast aluminium
Material of blades:Press-fitted sheet steel blank, sprayed with PP plastic
Material of guard grille: Steel, phosphated and coated in black plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing

Nominal data:
Phase: 1~
Type of voltage: AC
Nominal voltage in V: 230
Frequency in Hz: 50
Type of data definition: max. load
Air flow m3/h: 450
Speed rpm: 1300
Power input in W: 8
Current draw in A: 0.07
Max. back pressure in Pa: 23
Min. ambient temperature inC: -30
Max. ambient temperature inC: 50
