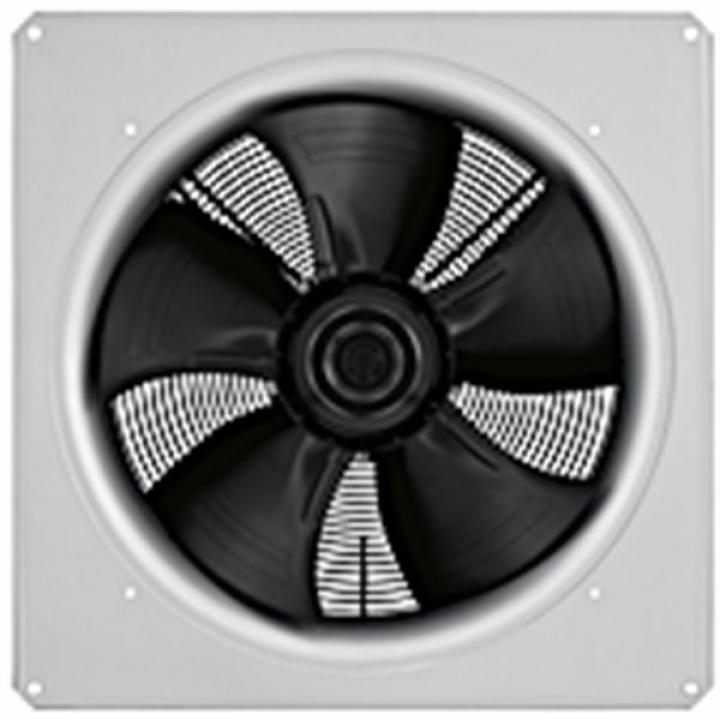

Ventilator axial W3G800-DT21-35

0 stars: 0.00 din 0 pareri

8403277 lei Lei
Cod produs
W3G800-DT21-35
Out Of stock
Descriere
*Price quotation uppon request!*
Technical description:
Mass: 44.4kg
Size: 800 mm
Surface of rotor: Coated in black
Material of terminal box: Die-cast aluminium
Material of blades:Press-fitted sheet steel blank, sprayed with PP plastic
Material of guard grille: Steel, phosphated and coated in black plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing

Nominal data:
Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Frequency in Hz: 50/60
Type of data definition: max. load
Air flow m3/h: 15810
Speed rpm: 925
Power imput in W: 1850
Current draw in A: 2.85
Max. back pressure in Pa: 190
Min. ambient temperature inC: -25
Max. ambient temperature inC: 65
