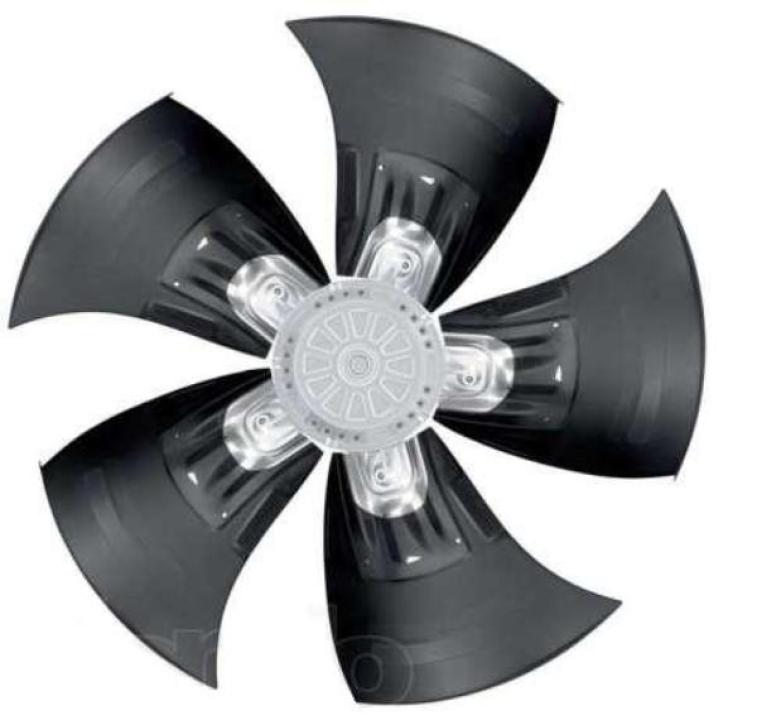

Ventilator axial A2D300-AP02-02

0 stars: 0.00 din 0 pareri

86285 lei Lei
Cod produs
A2D300-AP02-02
Out Of stock
Descriere
Technical description:
Mass: 3.1kg
Size: 300 mm
Rotor surface: Painted black
Material of housing: Sheet steel, painted black
Material of impeller: Press-fitted sheet steel blank
Type of protection: IP 44
Insulation class: "B"
Max. temperature: + 80 C
Min. temperature: - 40 C
Motor bearing: Ball bearing
Airflow direction: "A" (Clockwise, viewed toward rotor)

Nominal data
Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Nominal voltage range V: -
Frequency in Hz: 50
Type of data definition: maximum load
Air flow m3h: 2210

Speed rpm: 2580 - 2750

Power input in W: 210 - 300

Current draw in A: 0.36 - 0.48

Max. back pressure in Pa: 125 - 200

Min. ambient temperature in C: -25
Max. ambient temperature in C: 40 - 75
