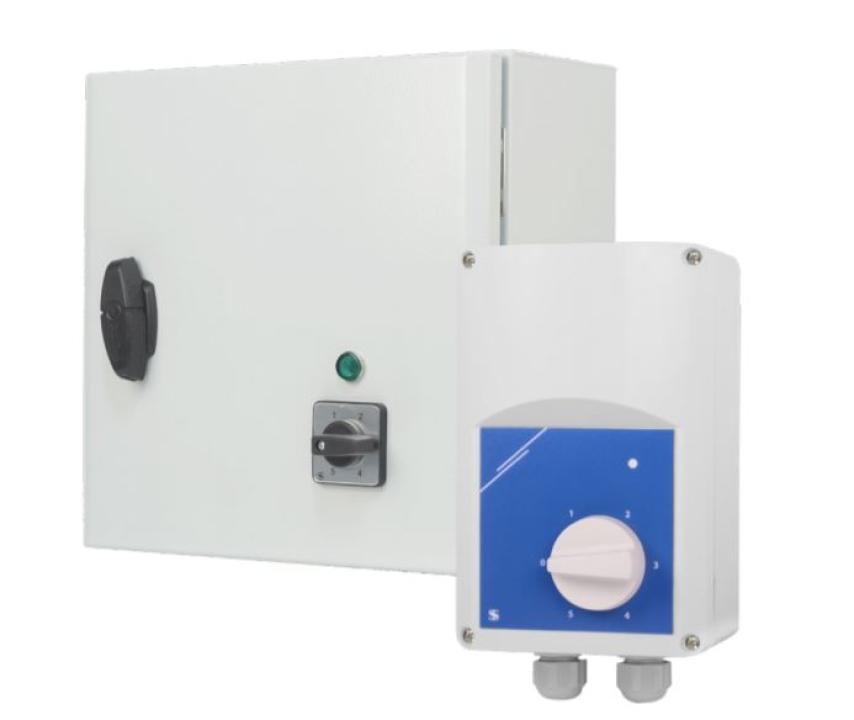

Controler 5-step fan speed TK monitoring STRS-1-100L22

0 stars: 0.00 din 0 pareri

135056 lei Lei
Cod produs
STRS-1-100L22
Out Of stock
Descriere
The STRS1 series of transformer fan speed controllers regulate the rotational speed of single-phase voltage controllable motors by varying the output voltage. They are equipped with auto-transformer(s), control the speed manually in five steps and feature TK monitoring for thermal motor protection. The used technology provides a regulated output voltage with a perfect sinusoidal shape. The controllers up to 7,5 A are available in plastic enclosure, while the models above 7,5 A are available in a metal enclosure.

Supply: 230 VAC / 50x60 Hz
Unregulated output: 230 VAC, 2 A
Protection standard: IP54
Temperature: -20x35 C
Rel. humidity: 5x95 % rH
Rated max. current (A): 10
Fuse (5*20 mm): F: T-16,0 A-H
I (A): 10

DIMENSIONS (mm):

A=300
B=325
C=185
D=255
E=255

FEATURES

Wide power range: 0,8 A?20 A
5-step rotary switch for manual control plus off-position
LED status indication.
