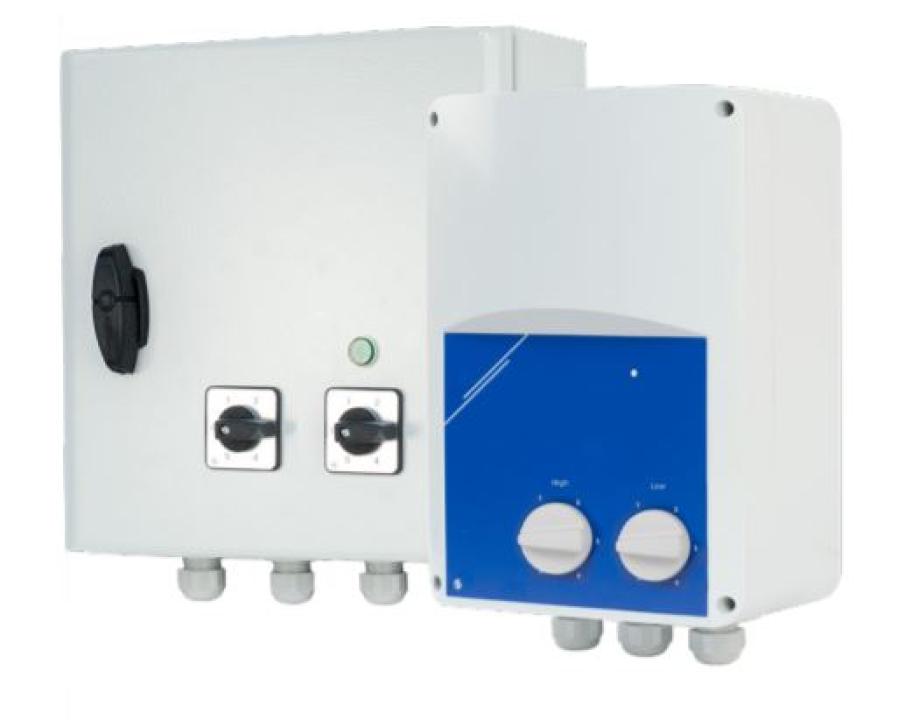

Transformator Single phase 230V 2 speed SC2-1-100L25

The SC2-1 series of transformer fan speed controllers regulate the rotational speed of single-phase voltage controllable motors by varying the output voltage. They are equipped with auto-transformers and control the speed manually in five steps. The SC2-1 also feature contacts for remote start / stop. The controller makes it possible to select two optimal motor speeds and to switch these by a contact (e.g. day / night control). In this way energy savings can be realised. The controllers up to 7,5 A are available in a plastic enclosure, while the models above 7,5 A are available in a metal enclosure.

Supply: 230 VAC / 50 60 Hz
Unregulated output: 230 VAC, 2 A
Protection standard: IP54
Temperature: -20 35 C
Rel. humidity: 5 95 % rH
Rated max. current (A): 10
Fuse (5*20 mm): F: T-16.00 A-H
I (A): 10

DIMENSIONS (mm):

A=300
B=425
C=175
D=255
E=355

Wide power range: 1,5?13,0 A

Each speed adjustable by 5-step rotary switch (knobs) plus off-position

Normally closed contact for external clock (high / low switching)

LED status indication

Unregulated output 230 VAC

Two speeds selectable by external contact (e.g. clock
