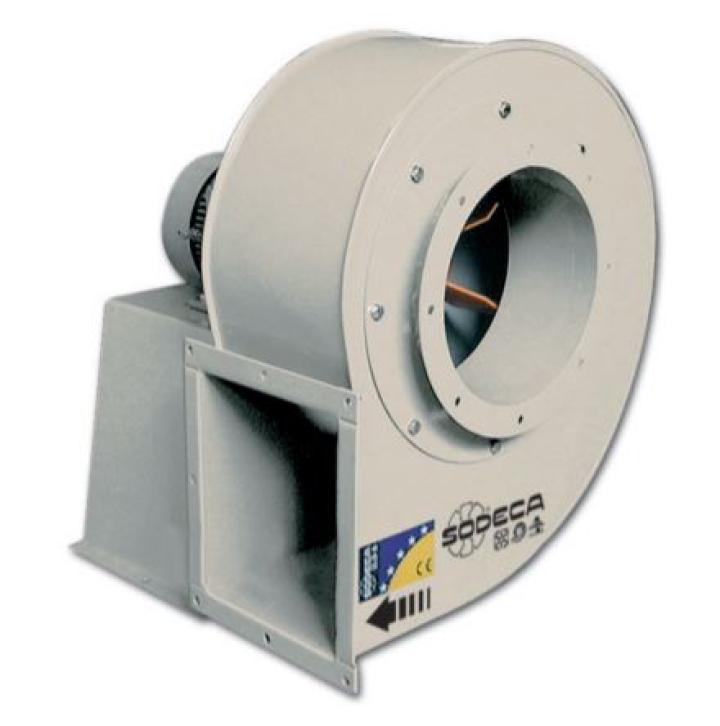

Ventilator particule Dust and solid material fan CMT-1128-2T

0 stars: 0.00 din 0 pareri

716448 lei Lei
Cod produs
CMT-1128-2T
Out Of stock
Descriere
Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz
Number of motor poles: 2
Speed (rpm): 2910
I max. (A): 7.32/4.21
Power (kW): 2.20
Air flow max. (m/h): 4500
Sound (db(A)): 76
Weight (Kg): 42

Dimensions (mm):
A = 472
B = 553
C = 505
H1 = 152

FEATURES:
Fan:

Sheet steel casing.

Straight blade impeller made of sheet steel.

Motor:

IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

Class F motors with ball bearings and IP55 protection.

Three-phase 230/400 V - 50 Hz (up to 4 kW) and 400/690 V - 50 Hz (powers higher than 4 kW).

Maximum temperature of air to be carried: -20 C +120 C.
