Ventilator particule CMT-1231-2T-4

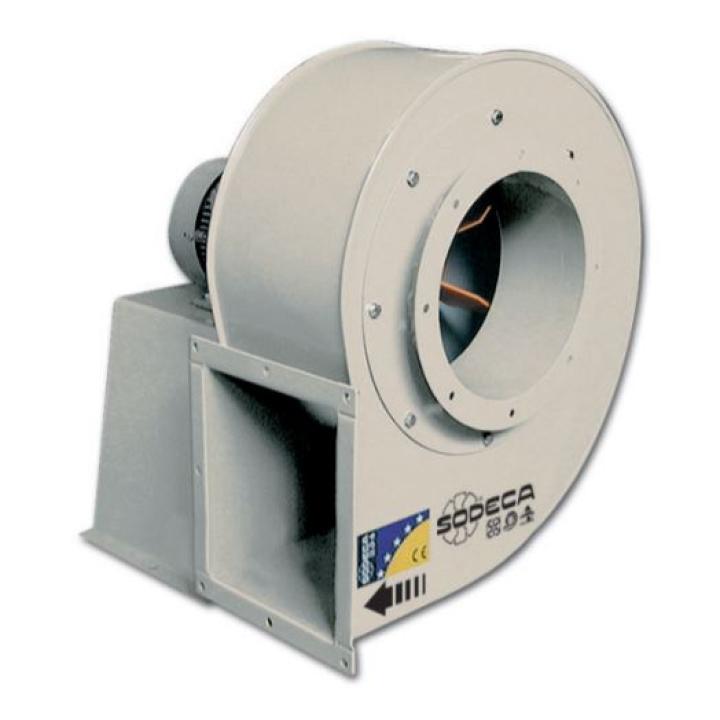

Medium pressure, single inlet, centrifugal fan with sheet steel casing and straight blade impeller for carrying dust and solid material.

Three-phase motor.
Power (kW): 3.00
Supply: 400V /50Hz
I max (A): 10.00
Air flow max. (m/h): 5220
Speed (rpm): 2910
Sound pressure level dB(A): 78
Weight (Kg): 57

Dimensions (mm):

A = 526
B1 = 630
C = 555
D1 = 240
O = 9.5

FEATURES

Fan:

- Sheet steel casing.
- Forward-curved impeller made of galvanised sheet steel.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings and IP55 protection except single-phase models, with IP54 protection.
- Single-phase 230 V - 50 Hz and three-phase 230/400 V - 50 Hz.
- Maximum temperature of air to be carried: -20 C +120 C.

Finish:

- Anti-corrosive finish of polyester resin polymerised at 190 C, previously degreased with phosphate-free nanotechnological treatment.
