Ventilator particule CMTS-718-2M/R

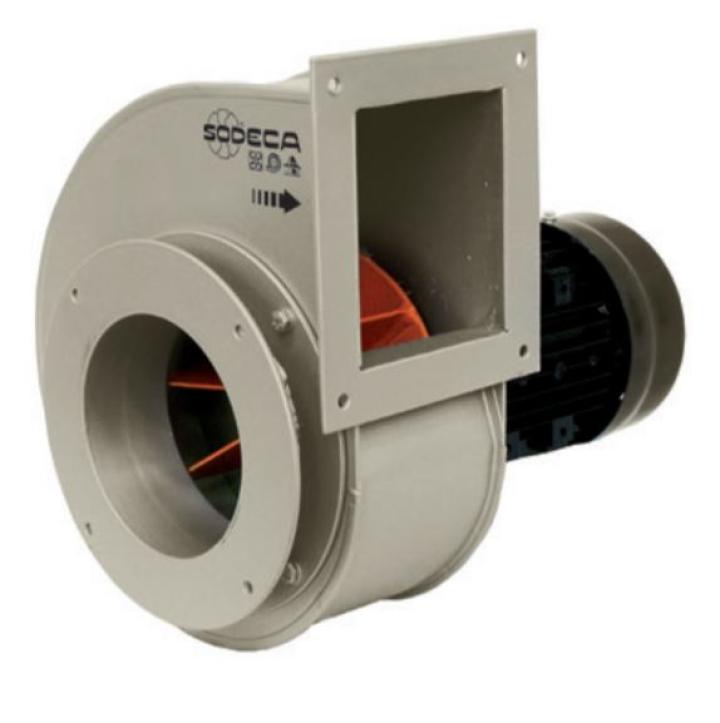

Medium pressure, single inlet, centrifugal fan with sheet steel casing and straight blade impeller for carrying smoke and solid material.

Single-phase motor.
Power (kW): 0.75
Supply: 230V /50Hz
I max (A): 4.62
Air flow max. (m/h): 1144
Speed (rpm): 2810
Sound pressure level dB(A): 70
Weight (Kg): 13

Dimensions (mm):

A = 303.5
B1 = 248
C1 = 465
D1 = 180
O = 9

FEATURES

Fan:

- Sheet steel casing.

- Straight blade impeller made of sheet steel.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz (up to 4 kW) and 400/690 V - 50 Hz (powers higher than 4 kW).

- Maximum temperature of air to be carried: -20 C +120 C.

Finish:

- Anti-corrosive finish of polyester resin polymerised at 190 C, previously degreased with phosphate-free nanotechnological treatment.
