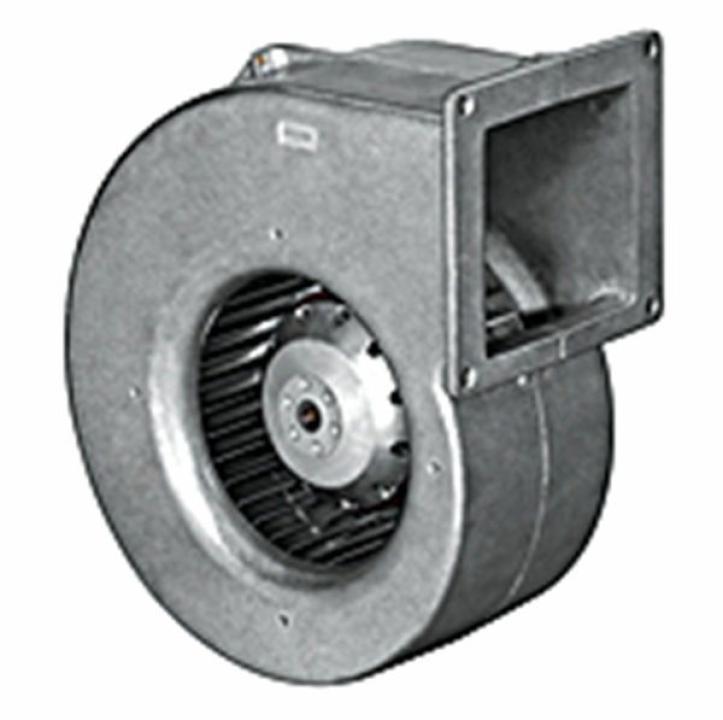

Ventilator AC centrifugal fan G3G180-EF01-03

0 stars: 0.00 din 0 pareri

201441 lei Lei
Cod produs
G3G180-EF01-03
Out Of stock
Descriere
Technical description:
Material: - Housing: Die-cast aluminium
- Impeller: Galvanised sheet steel
- Rotor: Partial cast in aluminium
Direction of rotation: Clockwise,seen on rotor
Type of protection: IP44
Insulation class: "B"
Mounting position: Any
Condensate discharges: None
Mode of operation: Continuous operation (S1)
Bearings: Maintenance-free ball bearings
Nominal data:
Size: 146mm
Nominal voltage: 230 VAC
Frequency: 50 Hz
Air flow: 500m3/h
Speed/rpm: 1370
Power input: 167 W
Current draw: 1.33A
Capacitor F/VDB: 3.0/450
Sound pressure levle: 60 dB (A)
Min. back pressure Pa: 0
Ambient temperature in C: -25 to +50
Mass: 3.2 kg
