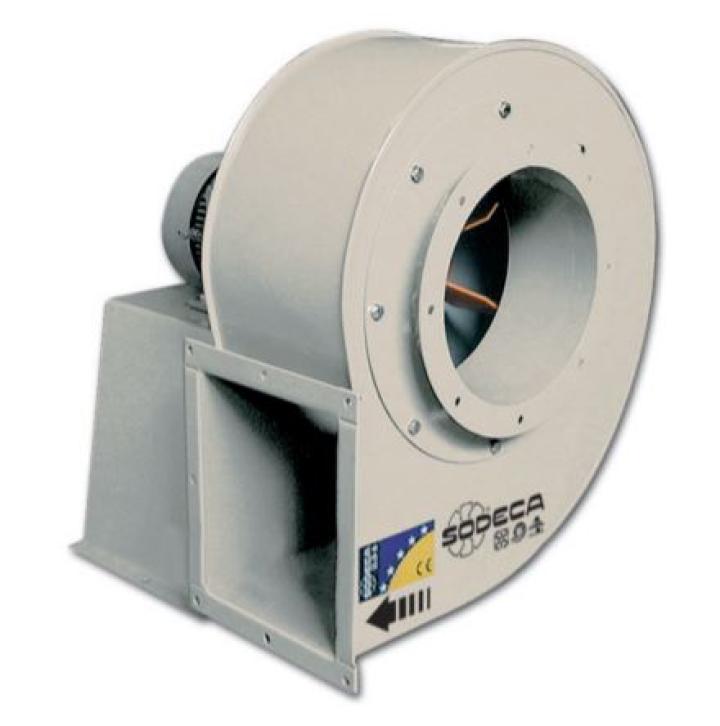

Ventilator particule CMT-922-2T

0 stars: 0.00 din 0 pareri

530261 lei Lei
Cod produs
CMT-922-2T
Out Of stock
Descriere
Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz
Number of motor poles: 2
Speed (rpm): 2830
I max. (A): 4.03/2.34
Power (kW): 1.10
Air flow max. (m/h): 2180
Sound (db(A)): 71
Weight (Kg): 23

Dimensions (mm):

A = 388.5
B = 455
C = 416
H1 = 134

FEATURES:

Fan:

- Sheet steel casing.

- Straight blade impeller made of sheet steel.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz (up to 4 kW) and 400/690 V - 50 Hz (powers higher than 4 kW).

- Maximum temperature of air to be carried: -20 C +120 C.
