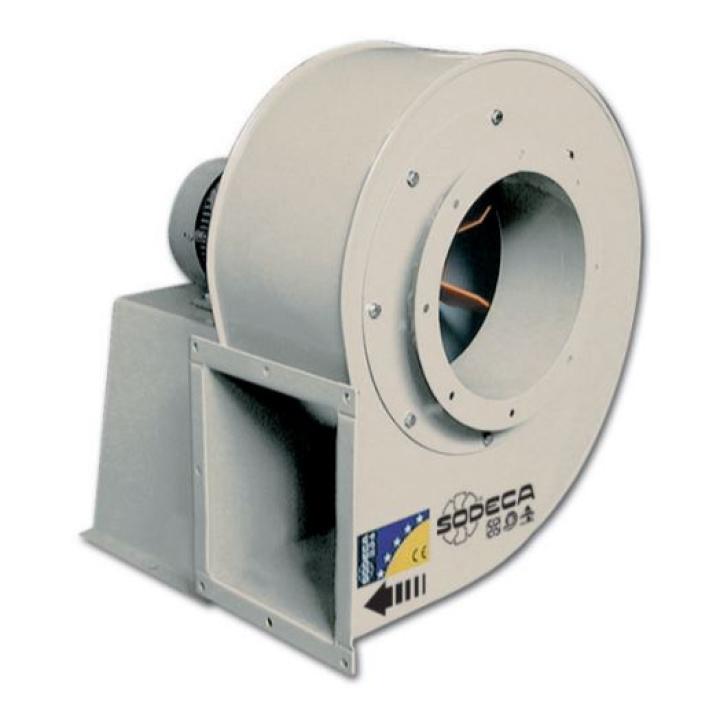

Ventilator particule CMT-1845-2T-15

Medium pressure, single inlet, centrifugal fan with sheet steel casing and straight blade impeller for carrying dust and solid material.

Three-phase motor.
Power (kW): 7.50
Supply: 690V /50Hz
I max (A): 14.10
Air flow max. (m/h): 5000
Speed (rpm): 2930
Sound pressure level dB(A): 89
Weight (Kg): 151

Dimensions (mm):

A = 711
B1 = 901
C = 712
D1 = 350
O = 11.5

FEATURES

Fan:

- Sheet steel casing.
- Forward-curved impeller made of galvanised sheet steel.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings and IP55 protection except single-phase models, with IP54 protection.
- Single-phase 230 V - 50 Hz and three-phase 230/400 V - 50 Hz.
- Maximum temperature of air to be carried: -20 C +120 C.

Finish:

- Anti-corrosive finish of polyester resin polymerised at 190 C, previously degreased with phosphate-free nanotechnological treatment.
