Ventilator Wall Axial Fan HC-25-2T/H / Atex / EXII2G Ex d

0 stars: 0.00 din 0 pareri

55692 lei Lei
Cod produs
HC-25-2T/H / ATEX / EXII2G Ex d
Out Of stock
Descriere

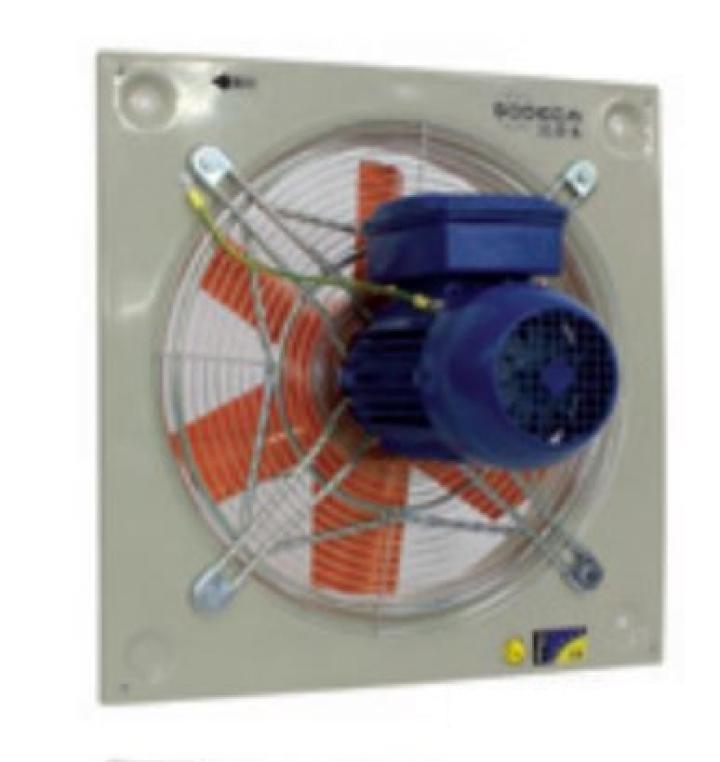

Wall-mounted axial fan with Atex certification.
Three-phase motor.

Power (kW): 0.12
Supply: 400V /50Hz
I max (A): 0.74
Air flow max. (m/h): 2200
Speed (rpm): 2730
Sound pressure level dB(A): 64
Weight (Kg): 3.8

Dimensions (mm):
A = 330
B = 275
C = 262
D = 260
E = 236.5

FEATURES
Fan:

Impeller made from cast aluminium
Airflow direction from motor to impeller

Stuffing-box spark-proof included

Protection guard against contacts, in accordance with standard UNE-EN ISO 12499:2010 included in models 25 to 63, other models as accessory.

Support frame in sheet steel with aluminium strip in the impeller area in accordance with Standard EN-14986:2007

Motor:

Class F motors with ball bearings and ATEX certification, Ex e explosion-proof and Ex d, Ex tc, or Ex tb flame-resistant

Three phase, 50Hz, 230/400V motors up to and including 4kW. 400/690V over 4kW

Fan working temperature: -20C + 40C

Finish:

Rust retardant finish with ATEX paint, containing no ferrous components, in polyester resin polymerised at 190C, after phosphate free pre-treatment
