Ventilator centrifugal CA-148-2T-0.75

0 stars: 0.00 din 0 pareri

644436 lei Lei
Cod produs
CA-148-2T-0.75
Out Of stock
Descriere

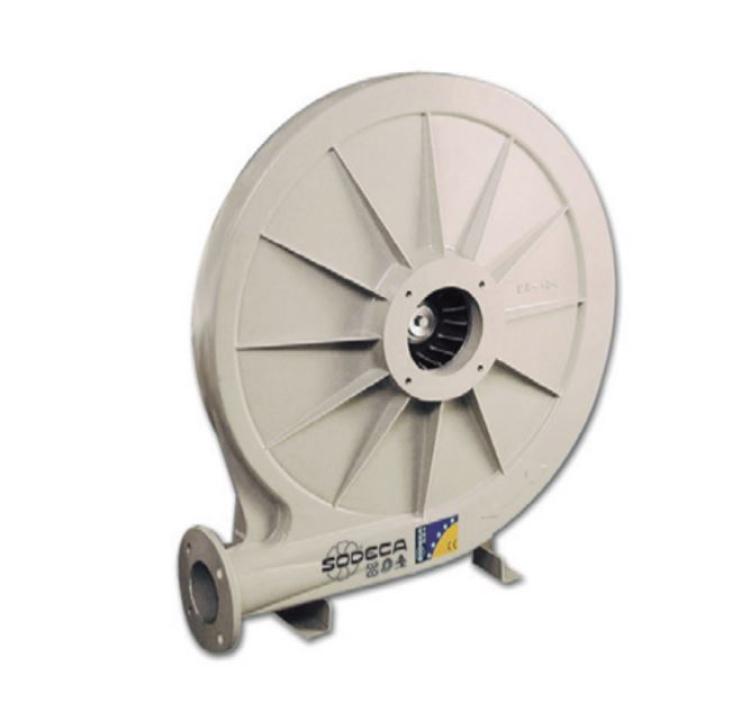

High pressure, single inlet, centrifugal fan with cast aluminium casing and impeller.
Three-phase motor.

Power (kW): 0.55
Supply: 400V /50Hz
I max (A): 2.59
Air flow max. (m/h) 400
Speed (rpm): 2760
Sound pressure level dB(A): 74
Weight (Kg): 28

Dimensions (mm):

A = 563
B = 639
C = 308.5
D = 100
O = 11

FEATURES

Fan:

- Cast aluminium casing.

- Cast aluminium impeller.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz (up to 4 kW) and 400/690 V - 50 Hz (powers higher than 4 kW).

- Maximum temperature of air to be carried: -20 C +120 C.

Finish:

- Anti-corrosive finish of polyester resin polymerised at 190 C, previously degreased with phosphate-free nanotechnological treatment.
