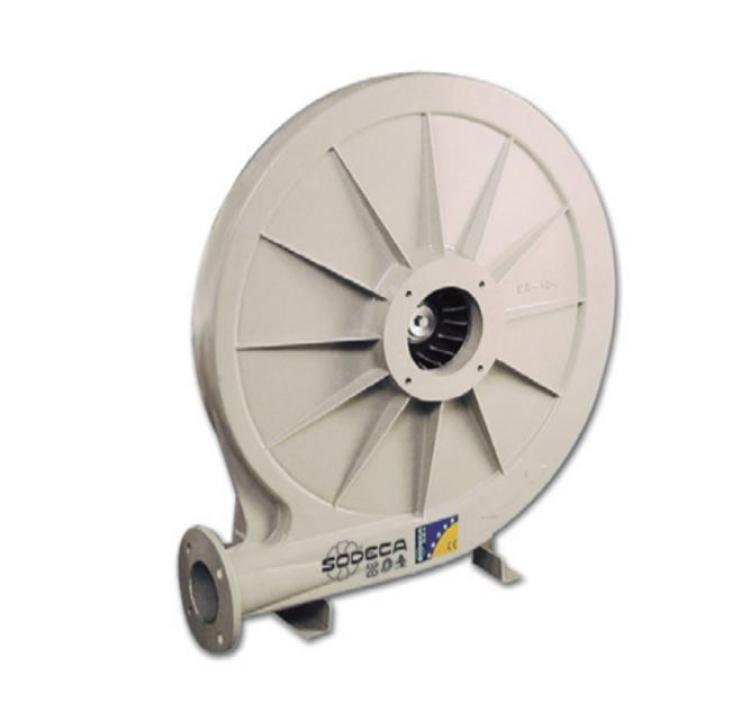

Ventilator centrifugal CA-154-2T-2

High pressure, single inlet, centrifugal fan with cast aluminium casing and impeller.
Three-phase motor.

Power (kW): 1.50
Supply: 400V /50Hz
I max (A): 5.34
Air flow max. (m/h): 800
Speed (rpm): 2875
Sound pressure level dB(A): 79
Weight (Kg): 52

Dimensions (mm):

A = 630
B = 708
C = 405
D = 115
O = 13

FEATURES

Fan:

- Cast aluminium casing.

- Cast aluminium impeller.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz (up to 4 kW) and 400/690 V - 50 Hz (powers higher than 4 kW).

- Maximum temperature of air to be carried: -20  C +120  C.

Finish:

- Anti-corrosive finish of polyester resin polymerised at 190 C, previously degreased with phosphate-free nanotechnological treatment.
