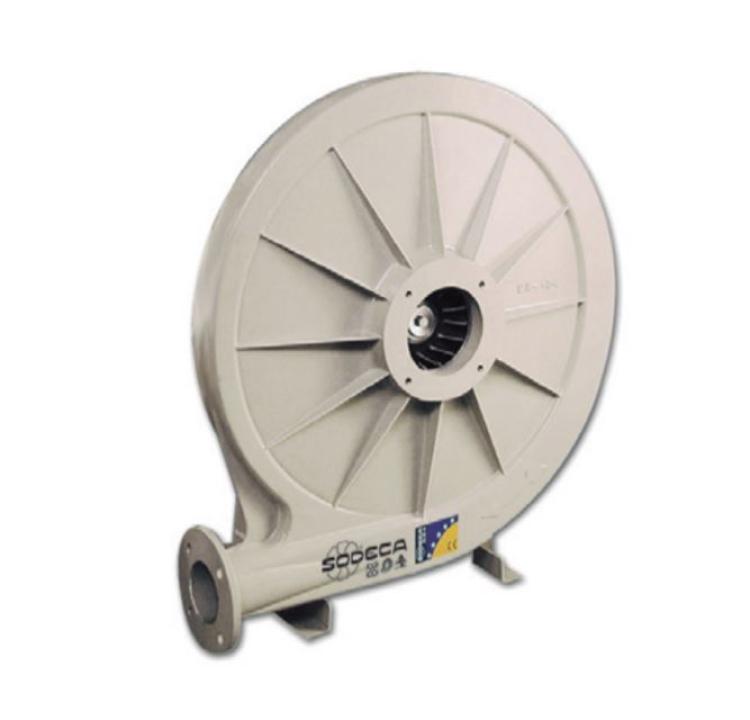

Ventilator centrifugal CA-142-2T-0.5

High pressure, single inlet, centrifugal fan with cast aluminium casing and impeller.

Three-phase motor.
Power (kW): 0.37
Supply: 400V /50Hz
I max (A): 1.92
Air flow max. (m/h) 350
Speed (rpm): 2710
Sound pressure level dB(A): 73
Weight (Kg): 23

Dimensions (mm):

A = 494
B = 540
C = 291
D = 90
O = 11

FEATURES

Fan:

- Cast aluminium casing.

- Cast aluminium impeller.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz (up to 4 kW) and 400/690 V - 50 Hz (powers higher than 4 kW).

- Maximum temperature of air to be carried: -20 C +120 C.

Finish:

- Anti-corrosive finish of polyester resin polymerised at 190 C, previously degreased with phosphate-free nanotechnological treatment.
