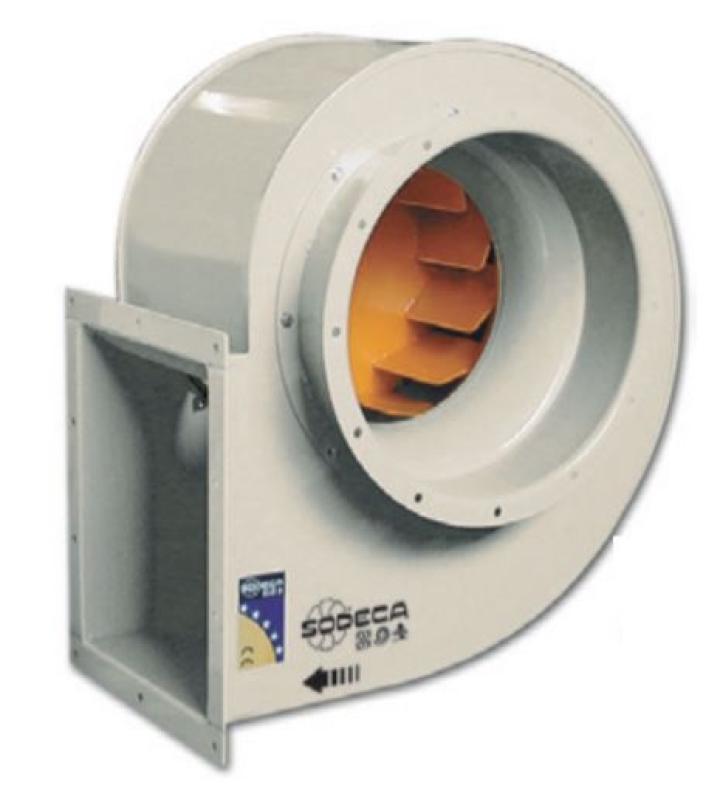

Ventilator centrifugal CBP-1650-4T-3

0 stars: 0.00 din 0 pareri

1057379 lei Lei
Cod produs
CBP-1650-4T-3
Out Of stock
Descriere
Medium pressure, single inlet centrifugal fans fitted with backward-curved impeller with a self-cleaning effect, specially designed for paint booths.

Supply: 230/400V 50Hz
Number of motor poles: 4

Three phase motor

Motor power (HP): 3

Speed (rpm): 1435

I max. (A): 7.93
Power (kW): 2.20
Air flow max. (m/h): 13500

Sound (db(A)): 78

Weight (Kg): 93

Dimensions (mm):
A = 856
B1 = 932
C = 850
H1 = 297

FEATURES:
Fan:

Sheet steel casing.

Impeller with reaction blades made of sheet steel.

Inspection hatch.
CBPC: with vertical outlet.

Motor:

IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

Class F motors with ball bearings and IP55 protection.

Three-phase 230/400 V - 50 Hz (up to 4 kW).

Maximum temperature of air to be carried: -20 C +120 C.
