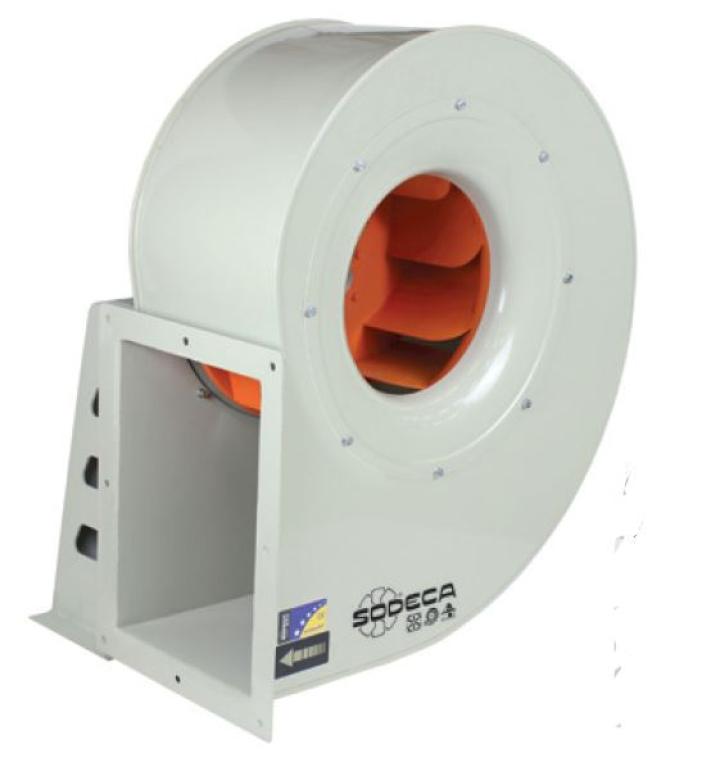

Ventilator centrifugal CRL-1856-4T-3

0 stars: 0.00 din 0 pareri

1208875 lei Lei
Cod produs
CRL-1856-4T-3
Out Of stock
Descriere
Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz

Number of motor poles: 4

Motor power (HP): 3

Three phase motor

Speed (rpm): 1435

I max. (A): 6.90

Power (kW): 2.20

Air flow max. (m/h): 12080

Sound (db(A)): 84

Weight (Kg): 132

Dimensions (mm):

A = 900
B = 1100
C = 510
H1 = 325

FEATURES:

Fan:

- Sheet steel casing.

- Impeller with reaction blades made of sheet steel.

- Maximum temperature of air to be carried: -20 C +120 C.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz
